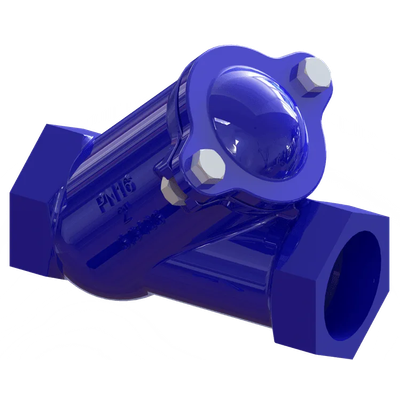

Flowrates - Threaded Ball Check Valve
FromFlowrates
The Flowrates ball check valve model CKB is suitable for applications involving the transfer of wastewater, loaded, or viscous fluids. Ball check valves are installed on pipelines to ensure the correct flow direction of the fluid. The fluid can flow in one direction, but the valve blocks the flow if the direction reverses.
Most popular related searches
ball check valve
check valve
ball valve
wastewater discharge
cleaning ball
drinking water
threaded ball valve
flow indicator
wastewater purification
flow control check valve
- Design compliant with EN 16767.
- Rubber-coated NBR ball check valve.
- Flow direction indicated by an arrow on the valve body.
- Self-cleaning ball with free movement inside the body.
- Low pressure losses.
- Full bore design with complete clearance for the ball.
- Installation in horizontal or vertical upward positions.
- Lifting ring on the cover for easy handling.
- Easy maintenance due to the straightforward removal of the cover.
- Wastewater discharge, purification, sanitation, and pumping.
- Water, drinking water, clear and loaded fluids, viscous fluids.
- Dimensions: DN50 to DN500
- Nominal Pressure: PN10 and PN16
- Design Standard: EN 16767
- Face to Face: EN 558 Series 48
- Flanges: According to EN 1092-2
- Tests: EN 12266-1
- Working temperature: Max. +80°C
- Backpressure: Min. 0.3/0.5 bar
- Internal/External Coating: FBE coating process with epoxy resin powder, blue color RAL 5017, thickness of 200 µm.
