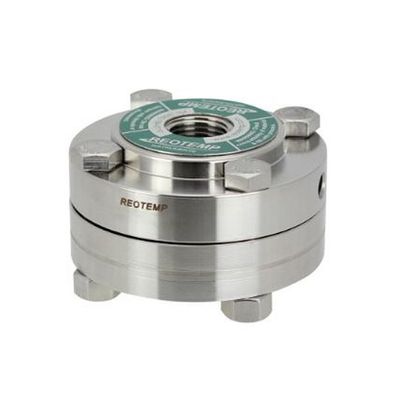

Reotemp - Model T51/V51/T61 Series -Threaded Offline Non-Metallic Diaphragm Seals
REOTEMP’s Threaded Offline Non-Metallic Diaphragm Seals are designed with an upper and lower housing bolted together with a Teflon or Viton diaphragm bonded to the upper housing. This design allows for the lower housing to be removed for easy cleanout of the seal chamber while still maintaining the system fill. The Teflon and Viton diaphragms are ideal for protecting the pressure instrument from corrosive process fluid.
Most popular related searches
diaphragm sealing
differential pressure gauge
pressure gauge
process fluid
corrosive fluid
pressure seal
gaskets
- Removable Lower Housing Design for Easy Cleanout
- Wide Variety of Plastic and Metallic Lower Housing Materials
- Highly Sensitive and Corrosion Resistant Diaphragm
- High Displacement Diaphragms Ideal for Mechanical Differential Pressure Gauges and Low Pressure Gauges
Construction Materials
- Diaphragm (Wetted): Teflon Virgin PTFE or Viton A.
- Lower Housing (Wetted): 316/316L SS, Hast C-276, Monel A400, Alloy 20, Teflon PTFE, PVC or others.
- Gasket: PTFE Durlon 9600 or Viton A
- Upper Housing (Non-wetted): 316/316L SS or Carbon Steel Nickel Plated
