Reotemp - Threaded Offline Welded Diaphragm Seals

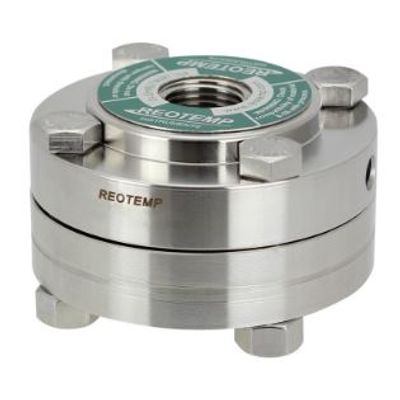

REOTEMP’s Threaded Offline Welded Diaphragm Seals are designed with an upper and lower housing bolted together with a diaphragm welded to the upper housing. This removable design allows for easy cleanout of the seal chamber, while still maintaining the system fill. The threaded offline diaphragm seal can be adapted to fit almost any pressure instrument and process application.
Most popular related searches
- Welded Diaphragm for Maximum Durability
- Wide Variety of Diaphragm and Material Options
- Continuous-duty Disc Protects from Process Fluid Leaking in the Event of a System Breach
- Easy Cleanout of Diaphragm Cavity without Compromising Filled System
Construction Materials
- Diaphragm (Wetted): 316/316L SS, Hast C-276, Tantalum, Monel A400, Nickel 201, or Others
- Lower Housing (Wetted): 316/316L SS, Hast C-276, Monel A400, Alloy 20, Hast B, 304/304L SS, or Others
- Gasket (Wetted): Klinger C-4401, PTFE Durlon 9600, Grafoil, Kalrez, or Virgin PTFE
- Upper Housing (Non-wetted): 316/316L SS, 304/304L SS or Others
