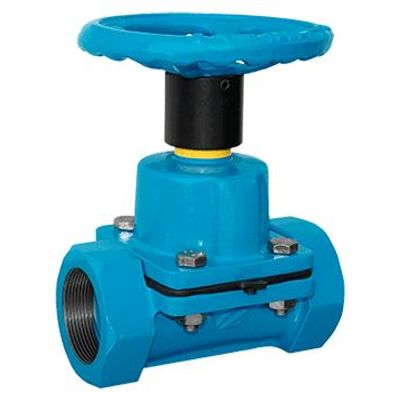

Valvulas - Model T85/99 -Threaded Straight Through Diaphragm Valve
Threaded straight through type model T85/99 is a bidirectional monoblock casted body bolted bonneted diaphragm valve. Threaded connection. Rubber line options No available. Applications: Pulp and Paper, Power generation, Water and Waste Water, Powder and Bulk Handling, Mining, Chemical, Food and Beverage.
Most popular related searches
diaphragm valve
pneumatic diaphragm actuator
position indicator
manual valve
leak tightness
actuated valve
solenoid valve
bulk handling
pneumatic actuator
pulp and paper water
- FLANGE CONNECTION :
- Thread NPT
- Thread BSP
- *Other connections on request
- SIZES & PRESSURES :
- Manual valves:
- DN20 to DN50: 8 bar
- DN65: 6 bar
- For actuated valves, please refer to the appropriate datasheets.
- TIGHTNESS :
- Watertight
- MATERIALS : BODY GGG50, CF8M (AISI316) Others on request. DIAPHRAGM
- Butyl (BU) Blue
- Aliment butyl (BUA)
- Reinforced butyl (BUR)
- Natural rubber (BL) White
- Natural aliment rubber (BLA)
- EPDM (EP)
- Hypalon (HY) Green
- Neoprene (NE) Red
- Nitrile (NI) Yellow
- Silicone (SI)
- Viton (VI) Orange
- *The abbreviations or the identification colours are in the flap of the diaphragm. *The pneumatic actuator diaphragm made in Natural rubber (BL). BONNET GG25 Others on request.
- ACTUATORS : Manual, air open actuator, air to close actuator, double acting actuator, electric, gear box.
- ACCESSORIES AND OPTIONS : Position indicators, switches, solenoid valves, padlocks, mechanical limit switches, positioner 4/20mA.
- Monoblock body, one piece cast.
- 100% leak tightness performance guaranteed.
- The valve can be installed in any position.
- High strength woven Diaphragm reinforced design.
- Bolted bonnet design.
- Easy maintenance: Three part design (Body, diaphragm and actuator) allows maintenance and actuator retrofitting without removing the valve body from the pipeline.
- Bidirectional shut off design.
DIRECTIVAS:
- DIR 2006/42/CE (machinery)
- DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
- DIR 2014/34/EU (ATEX) Area 2&22
