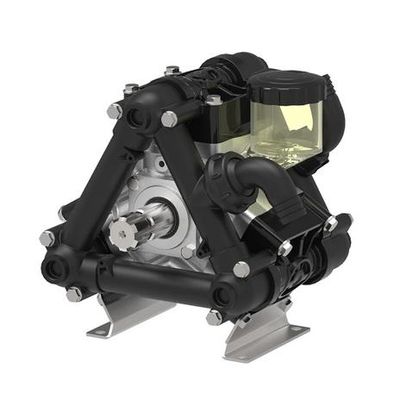

Imovilli - Model D 93 -Three Diaphragm Semi-Hydraulic Pump
86 l/1′ – 20 bar – 550 RPM. Three diaphragm semi-hydraulic pump external manifolds, all wetted parts are in corrosion resistant materials, plastic coated aluminium pump heads.
Most popular related searches
APPLICATIONS
- Row-crops spraying, Liquid fertilizing
VERSIONS
- Shaft M 1″3/8 splined
- Speed: 550 RPM max
- Pressure: 20 bar max
- Capacity: 86 l/1′ max
- Weight: 11,5 Kg
- Dimensions: 336x270x298
