Aidu - Model ADMT-WF100GT1 -Three-dimensional Matrix High-density Electromagnetic Exploration System
Products advantages: 1.Fully wireless. No complicated cables. 2.One button minimalist design. Only one power button, no other button. 3.Connecting mobile phone by bluetooth. Connecting mobile phone for detection/mapping/logging well. 4.Detec
Fully wireless detection.
length: 46-130cm, Light-weight: 1.1-3.6KG.
Handle by one person.
Processing by put it on the ground or hold it or carry it .
49 Years Research and Development
Stable Accurate
Free upgrading at the original price after purchasing within six months

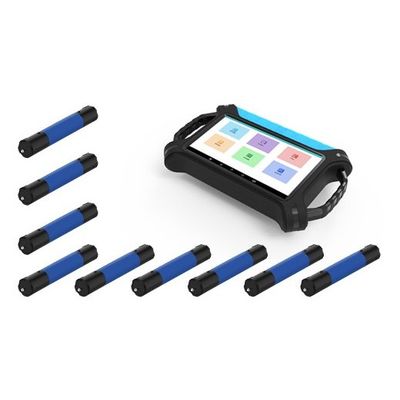

The matrix MT electromagnetic geophysical probe uses the magnetotelluric field as the source, and is composed of more than 6 geophysical geophysical probes of the same model. It can use two measurement modes: MN electrode or TT probe, which can measure both MT electric field and MT electromagnetic field. Fast collection of multiple parameters. Form a digital and intelligent matrix measurement; this equipment is suitable for a variety of application scenarios, widely used in water prospecting, mineral prospecting, geothermal hot spring and other resource surveys, and also used in dyke piping detection, cavities and pipelines and other underground buried objects detection.
Completely
wireless
Adjustable
depth
Freedom of
combination
Smart &
simple
Resources Survey
Resources Survey: Resources exploration such as groundwater searching, geothermal hot springs searching, mineral prospecting, etc
Buried Object Detection: Dikes and dams piping detection, cavities and pipelines and other underground buried objects detection
Adjustable depth (m): 5/10/20/40/80/100m
Battery: 8.4V 3300mAH lithium battery
Connection: WIFI
MN electrode: Copper 12mm φ12 or self-made electrode
Display: 10.1 inch Android system dedicated control host
Mainfunctions: automatic imaging
TT EMI coil (mm/w): 150/0.2
TT EMI core (KmH/m): 120
Working condition: Any grounds
Frequency range (Hz): 100-10K
Measuring mode: MN/TT
Resolution: 0.001mV±2%
Sampling time (s): 40-120
Depth layering: 5-100
Length Weight (cm/kg): 50 / 2
