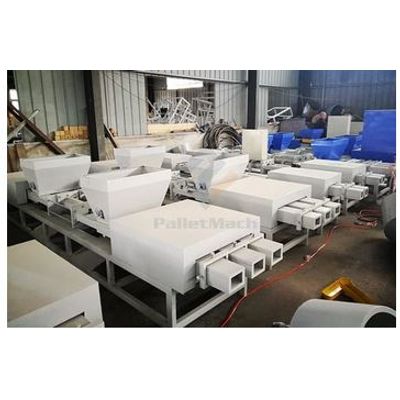

Shanghai-Pallet - Model PMT -Three-Head Pallet Block Machine

1. Easy Operate
2. Large Capacity
3. High efficiency

Raw material for three-head pallet block machine

Sawdust and wood shavings

Technology process

Raw materials → crushing → drying → mixing with glue → hot pressing → long pallet blocks → cutting → final blocks

Final pressed pallet blocks

1. Free fumigation and free quarantine.
2. Uniform heating, high density, and meeting the E1 grade.
3. Smooth and clean surface, and good waterproof performance.
4. Customized sizes are available.

1. Three-head wood block machine mainly uses sawdust and wood shavings or other scrap woods as raw materials.
2. It could recycle the wood waste efficiently.
3. Easy to operate. One person could handle 3 machines.
4. High efficiency. Triple heads improve production efficiency
5. Cross-section is completely vertical, reducing the previous cutting loss.
6. Setting the cutting length by entering the value, fully automatic, and suitable for the specifications of pallet block.
7. Saving the production cost and enhancing the process of automation.
8. The size of final pellet blocks can be adjustable.
9. One machine could make two different block sizes.

• Model PMT
• Size (mm) 4800*900*1420
• Capacity (m3/24 hours) 5-9
• Power (kW) 12-19
• Density (kg/m³) 550-600
• Weight (kg) 2000
• Dimension with saw (mm) 8000*700*1500
• Length and width of block (mm) 75-145
• Block size: 75-145 mm in width, 75-145 mm in length. Customized service is available.
