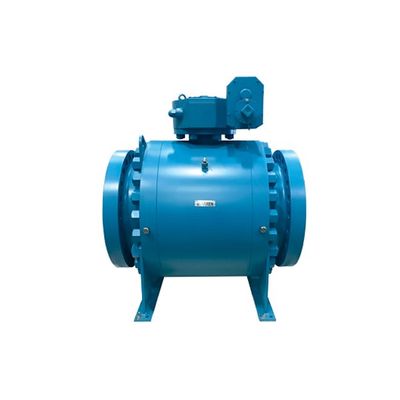

Warren Valve - Three Piece Trunnion Mounted Ball Valve
FromWarren Valve
Warren Valve offers a 2”–48” forged steel three-piece trunnion mounted ball valves to meet the industry’s strictest specifications. Our products include ANSI Classes 150–2500 in carbon steel bodies with electroless nickel plating, stainless steel trim, or full stainless steel body and trim. Double block and bleed and emergency sealant injection fittings are standard, along with NACE and fire-safe.
Most popular related searches
trunnion mounted ball valve
trunnion mounted valve
quarter-turn ball valve
ball valve
pressure relief valve
relief valve
fugitive emissions
stainless steel plate magnet
Standard Features
Valve Functionality
- Three piece forged body and end adaptors
- Anti Static device
- Anti Blowout Stem
- Pressure relief valve to avoid cavity overpressure when applicable
- Emergency built-in stem and seat sealant injection system
- Fire Safe, MR-0175 NACE compliant, Fugitive Emissions compliant.
- Double Block and Bleed (DB&B)
- Double Isolation and Bleed (DIB-1 or DIB-2)
Seat Design Features
Design Standards
- Double Piston Effect
- Self Relieving
- Combination of options available
- B16.34
- B16.10
- B16.5
- B16.25
- B16.47
- Fire Safe
- Low Fugitive Emmisions Compliant
- CSA Z245.15.2017
- SIZE RANGE : 2” – 48”
- PRESSURE RANGE : ANSI 150# through ANSI 2500# pressure class
- MATERIAL GRADES : A105N, A182-F316 SS, A350-LF2, A350-LF6, and F51 Duplex
- PORT SIZES : Full Bore, and Reduced Bore
- TRIM MATERIALS : 3MIL ENP, 316SS, and F51 Duplex
- SEAT INSERT MATERIAL : Devlon (PEEK and others available upon request)
- SEAL MATERIALS : HNBR 90 DURO, James Walker 101/985, FKM GLT, and AFLAS
- END CONFIGURATIONS : Raised Face (RF), Ring Type Joint (RTJ), Butt Weld (BW), and Flanged X Butt Weld
