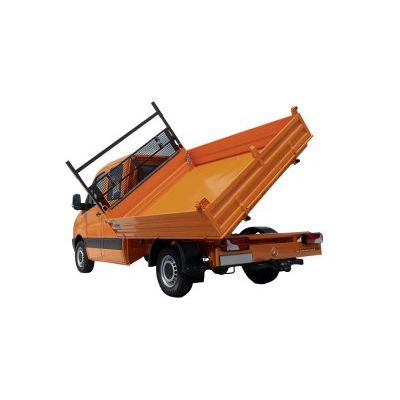

Mercedes-Benz SPRINTER - Model Type 1 and 1.5 -Three-Way Tipper

Steel tipper body:
With floor assembly, two longitudinal members with closely spaced cross-members, welded-on floor panel with lashing recesses, ram head cross-member with ball cap, front and rear tipping arms, lateral rub rails, front support and rear closure of tipper body, safety prop, safety cables, bolted 450 mm high front wall with front panel support struts and grab handles, bottom-hinged side panels, top- and bottom-hinged tailgate, including all required metal fitting parts, bump stop, chains for retaining the side wall, access ladder, noise reduction at the lower side wall bearings, locating pins to prevent diagonal placement of pins

Electromagnetic tipper control:
With optic warning device in the driver´s cab All steel components are sandblasted, primer-coated and painted. The above mentioned MEILLER three-way tippers can also be ordered directly through the Mercedes-Benz sales organisation together with the chassis.

Technical Data Type 1 for 3.5 to chassis:

Payload range: up to approx. 1 800 kg
Drive: hydro-electric aggregate 12 V
Body panels: 2.0 mm sheet steel QStE 380
Body floor: 2.5 mm sheet steel QStE 500
Weight of complete tipper assembly with the following dimensions:
2.80 x 2.10 x 0.35 m (int. dimensions) (wheelbase 3 250 mm).... approx. 550 kg
2.60 x 2.10 x 0.35 m (int. dimensions)
(wheelbase 3.665 mm double cabin) approx. 530 kg
3.40 x 2.10 x 0.35 m (int. dimensions) (wheelbase 3,665 mm)..... approx. 625 kg

Technical Data Type 1.5 for 5 to chassis:

Payload range: up to approx. 2 500 kg
Drive: hydro-electric aggregate 12 V
Body panels: 2.0 mm sheet steel QStE 380
Body floor: 2.5 mm sheet steel QStE 500
Weight of complete tipper assembly with the following dimensions:
2.80 x 2.10 x 0.35 m (int. dimensions)
(wheelbase 3 665 mm double cabin) approx. 575 kg
3.60 x 2.10 x 0.35 m (int. dimensions) (wheelbase 3 665 mm)..... approx. 665 kg

Storage rack: Adjustable, stuck behind driver´s cabin (not in conjunction with front wall enhancement)

Front wall enhancement:Up to 700 mm

Side protection:For trailer ball coupling, in order to protect the rear panel

Warning stripes:To stick on the exterior rear wall of the tipper

Our strong points to your advantage:

• Robust tipper in the transporter class
• Suitable for ordinary bulk material (e. g. sand, gravel, coal, greenery) and general cargo
• Robust hook locks
• Bottom-hinged side walls
• Maintenance-friendly welded components (front wall, metal fittings, ball cap)
