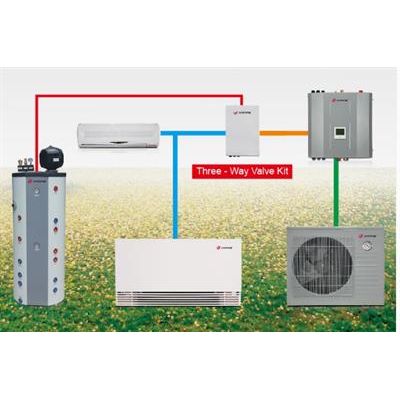

Three-Way-Valve Kit (Cute Version)
In addition to the Standard Version, Amitime also offers a three-way valve kit with the built-in heating curve function. It includes 15 different heating curves programmed into the controller logic, based on different house insulation levels. By selecting the heating curve that suits the related house insulation level, users can receive their desired heating temperatures from the unit, with an optimized system efficiency.
With an extra ambient temperature sensor, this controller can not only switch between heating" or and `sanitary hot water` modesas well as `cooling" and `sanitary hot water* modes, but also switch between cooling and heating modes according to ambient temperature automatically. This means after all parameters set, the system can provide sanitary hot water, heating (hot) water and cooling (chilled) water automatically, with total peace of mind.
For those homes utilizing a central control system, Amitime has developed the MS board, so that the heatECO system can be integrated flawlessly with the existing central control system.
The MS board can be added on to the existing
Amitime heatECO system through its four
output terminals, named as `H\ "C\ "W* and "GND". If any of *H\ `C and "W* terminals paired
with GND is closed, the system works in correspondent working mode. For example, if *H" and *
GND` pair is closed, unit works in heating mode.
