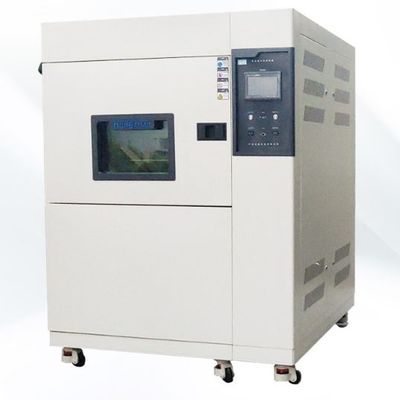

Lab Companion - Model TS series -Three-zone Thermal Shock Test Chamber

One chamber for everything

Using the damper shock method, 3 temperature zones (cold, hot, ambient) can be  simulated in the same chamber. This makes optimum stress conditions possible  without having to move the test specimen

Load test equipment easily

The basic version has an access port on the left with a 50 mm diameter for  the placement of cables and connections. Movements of the loaded cables  are avoided by the stationary test space.

Well distributed, efficiently tested

The test specimens can be distributed on up to seven insert grids, making  an increased test throughput of up to 150 kg possible.
