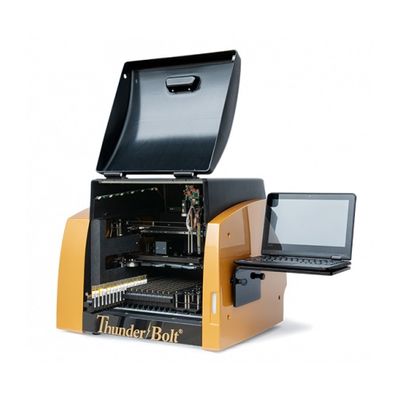

ThunderBolt - ELISA & Chemiluminiscence Analyzer System
The ThunderBolt® is an innovative 2-plate, fully automated, open platform that is compact and cost efficient. The user friendly and flexible software is capable of programming a broad range of protocols. The ThunderBolt®, an instrument manufactured by Eurofins Technologies` strategic partner Gold Standard Diagnostics, is available for both ELISA and Chemiluminescent (CLIA) applications.
The ThunderBolt® is an innovative 2-plate, fully automated, open platform, that can run ELISA and Chemiluminescence (CLIA) assays. This walk-away instrument was designed to simplify your laboratory experience, increase your productivity, and reduce your waste.
Eurofins Technologies offers multiple ELISA assays validated on the ThunderBolt®, from the following product lines:
- SENSISpec Allergen ELISA Kits
- BACSpec Pathogen ELISA Kits
- Environment & Water ELISA Kits
- SKU: ThunderBolt®
- Sample Capacity: 12 racks of 16 samples. Up to 192 samples total
- Reagent Capacity: 2 racks of 7 reagents. Up to 14 reagents total
- System Architecture: Open, fully customizable
- Incubation temperature: 2 positions. Room temperature to 40 °C
- Spectrophotometer: 5 filters: 405, 450, 490, 550 and 630 nm wavelengths standard (custom available),
- Linear Range 0 to 3.0 OD
- Chemiluminescence Photomultiplier Tube (PMT): Detection type: glow, Spectral range: 300-500 nm, Dark count: 50 counts per second (standard), Measuring time: 200 ms (adjustable 1 to 1000 ms), Dynamic range: 6 decades (*optional configuration)
- Power Supply: Voltage: 100-265V. Frequency: 50-60Hz. Consumption: 12W w/o incubator, 120W max
- Dimensions: W: 64 cm, D: 57 cm, H: 45 cm (W: 25.2 in, D: 22.5 in, H: 17.7 in), H (open): 91.5 cm (36 in)
- Language: Multi-language support
- CE marked: Yes
