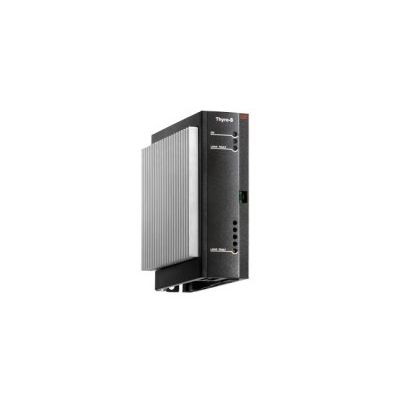

THYRO - Model S -Connection-Ready Thyristor Switch
As a connection-ready thyristor switch with secure operational behavior and load monitoring, the Thyro-S (SCR) power controller switches electric loads, for example, current, voltage, or power. It can be connected to bus systems, used instand-alone operation, or used in combination with all established 2-point process controllers, PLCs, or computer systems. With simple mounting, quick commissioning, and easy operation, the Thyro-S series can be integrated easly into a wide range of applications.
Most popular related searches
load monitoring
SCR control
monitoring relay
process control system
air conditioning monitoring
security system
In addition to durability and high efficiency, other features include:
- Simple handling and small space requirements
- Rated voltages 230 V, 400 V, 500 V
- Rated currents 16 to 280 A
- Integrated semiconductor fuse
- Standard system interface for connection to an optional bus module (e.g. for PROFIBUS DP, Modbus RTU, CANopen, DeviceNet, EtherNet/IP, Modbus TCP, PROFINET)
- LED status display
- Operating modes 1:1, as well as 1:2, 1:3, 1:5 (e.g. for commissioning)
- Logical signal control of 24 V (> 3 V) or standard system interface
- Secure isolation between control and power sections
- 3 phase design by connecting two Thyro-S units
- Isolation between control and power sections
- DIN rail mounting for 16 A, 30 A, 45 A, 60 A units
- UL approval of UL 508 A (100,000 A S.C.C.R.)
- Quality standards in accordance with ISO 9001
- CE-compliant
Additional for H RL1 type
- External electronic power supply 24 V AC/DC
- Load monitoring
- Alarm relay
