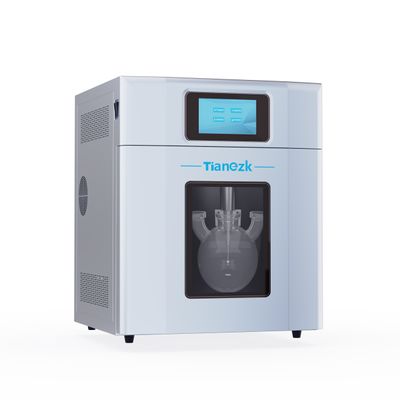

Tianezk - Model TP-3Pro -Microwave Chemical Synthesizer
Tianyi Zhongke-TP-3Pro microwave chemical synthesizer uses the electromagnetic energy generated by microwaves to act on polar molecules, thereby causing the molecules to vibrate and generate heat. Because of its good heating reaction, it is used in chemical synthesis experiments.
Brief description: Tianyi Zhongke-TP-3Pro microwave chemical synthesizer uses the electromagnetic effect of microwaves to act on polar molecules, thereby causing the molecules to vibrate and generate heat. Because of its good heating reaction, it is used in chemical synthesis experiments.
- Product model: TP-3Pro
- Manufacturer Type: Manufacturer
- Update time: 2024-07-23
- Number of visits: 3880
- Brand: Tianezk/Tianyi Zhongke
- Origin Category: Domestic
- Price range: Negotiable
- Application Areas: Chemical, petroleum, electronics, aerospace, pharmaceutical
- Product Name: Microwave Chemical Synthesizer
- Product Model: TP-3Pro
- Product Features: Ultrasound, microwave, UV, stirring
Tianyi Zhongke-TP-3Pro microwave chemical synthesizer is suitable for sample synthesis, extraction, ashing, sintering, drying and other processing in industries such as food, medicine, chemical industry, geology, metallurgy, materials, schools, and scientific research institutes.
- Microwave frequency: 2450MHz, non-pulse continuous automatic frequency conversion control, power automatically and continuously adjustable.
- Temperature control system: Use wireless penetrable infrared temperature sensor, or you can choose to use wired platinum resistance temperature sensor.
- Ultrasonic frequency: 25KHz, can be involved in or non-involved samples, and act on sample functions through cavitation effect or air transmission.
- UV catalytic system: wavelength 253.7nm, power 100W.
- Stirring device: magnetic stirring, stirring speed is adjustable.
- Multifunctional operation mode, which can be expanded to microwave extraction, microwave synthesis, ultrasonic wall breaking, etc.
- The reaction inside the cavity can be observed in real time.
- Six-layer steel structure furnace door with buffer floating design.
- Mechanical lock and electronic lock are used in coordination. The furnace door cannot be opened during operation. When the furnace door is opened abnormally, the instrument automatically stops working.
- The furnace cavity is made of 316L industrial grade stainless steel, and the furnace cavity is sprayed with 6 layers of PFA anti-corrosion coating.
- Microcomputer control function, can realize historical data viewing, data export and import.
- Capacitive LCD touch screen, real-time display including: temperature, heating time, constant temperature time, microwave power, reaction progress.
