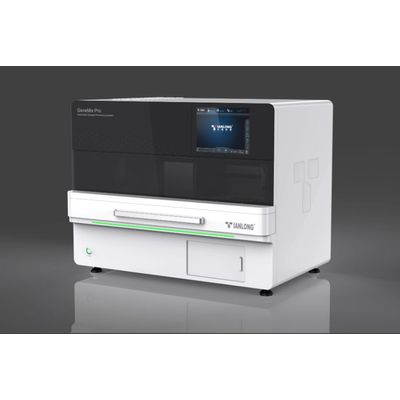

Tianlong - Model GeneMix Pro -Automatic Sample Processing System
Maintain sample integrity with a hands-free method of capping and decapping tubes quickly and easily with the Tianlong GeneMix Pro Automatic Sample Processing System. Designed for automating laboratory workflow, GeneMix Pro can process 96 samples within 20min and free professionals from tedious mechanical operations. The workflow include automated uncap/recap for sample tubes, sample pipetting and dispensing, Proteinase K/Internal reference reagent loading, automatic mixing of sample tubes. GeneMix Pro can automate laboratory workflow and improve efficiency and safety for medical professionals.
- Sample information scanning
- Automated uncap/recap for sample tubes
- Sample pipetting and dispensing
- Proteinase K/Internal reference reagent loading
- Automatic mixing of sample tubes
- FULL AUTOMATION -Automated Id opening/closing, dispensing, and proteinase K/ internal control addition, saving time and efforts.
- SAFE OPERATION - With droplet entrapment, airtight and drip-proof, pressure sensing detection design, all functions are designed to be done within the biosafety cabinet, with remote control from Pad to prevent cross-contamination.
- HIGH EFFICIENCY - 48 samples completed within 20 min, and dispensing-only mode of just 10min.
- EASY-TO-OPERATE - Stand-alone operation, or Pad remote control.
- INTELLIGENT TECHNOLOGY - Real-time monitoring of materials and equipment status, and alarm if abnormal.
- USER-FRIENDLY - Voice reminders during the process; pre-set automatic mixing.
Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases.
- Product Name: Automatic Sample Processing System-GenMix Pro
- Throughput: 96
- Handling Time: ≤20 minutes for 96 samples
- Compatible Sampling Tubes
- Diameter: 13-19mm; Height: 55-115mm
- Compatible with 5mL, l0mL and 20mL screwcap sampling tubes; -5-in-l, 10-in-l mixed sampling tubes direct load with cap;
- Direct loading with cap for sampling tubes with swab;
- Preset with conventional standard sampling tubes, ready for use with customized sampling tubes specifications
- Compatible Deep-Well Plates
- 6*16T standard ImL deep-well plates
- 1*96T standard ImL deep-well plates
- Compatible with 3mL deep-well plates (including 3 * 8T 3mL large-system deep-well plates of Tianlong)
- Preset with conventional standard deep-well plates, ready for use with customized deep-well plate specifications
- Pipetting
- Dual independent pipetting modules
- Pipetting volume: 5 -1000 μL
- Liquid level sensor
- Pipetting volume detection
- Pipetting Accuracy
- 5 μL~50 μL: Er: ≤3.5%
- 50 μL~200 μL: Er: ≤2.5%
- ≥ 200 μL: Er: ≤2.0%
- Pipetting Repeatability/CV
- 5 μL~50 μL: CV: ≤ 2.5%
- 50 μL~200 μL: CV: ≤ 1.5%
- ≥ 200 μL: CV: ≤ 1.0%
- Smart Information System
- Sampling tube information scanning (ID code & QR code)
- Deep-well plate status identification (open system) /information scanning (Tianlong system)
- Automatic barcode scanning of sample racks
- "Sample - rack - plate” information scanning, "sample to result" in closed-loop management
- Lis system link
- Touch Screen: 12.1 inch LCD touch screen
- Internet Port: USB 3.0/Ethernet port
- Dimensions: 1130mm(L) x780mm(W) x 920mm(H)
- Net Weight: <200Kg
- Power Supply: Voltage: 100 - 240 V; Frequency: 50/60HZ; Rated power: 60OVA
- Temperature: 15°C-35°C
- Relative Humidity: 35%RH-70%RH, non-condensing
- Atmospheric Pressure Range: 56-106Kpa (Altitude ≤ 4000m)
