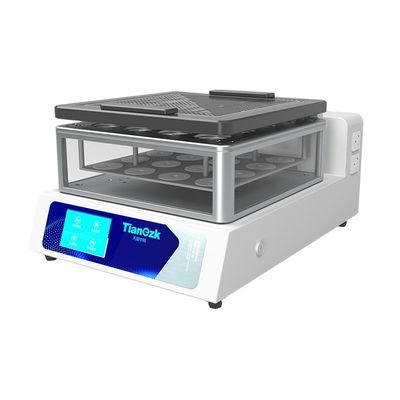

Tianyi Zhongke - Model TK Series -Vacuum Parallel Concentrator
Tianyi Zhongke-TK series vacuum parallel concentrator can perform closed evaporation/concentration of multiple samples individually or collectively, recover solvents quickly and effectively, reduce the total evaporation time of multiple samples, increase the processing volume, save operation time and experimental resources, and the parallel evaporator is simple to install and operate, and flexible to use. Since the processing conditions are parallel, the parallelism is also better. The parallel evaporator is mainly used for evaporation and concentration of samples in chemical, pharmaceutical, biological, environmental protection, testing or other industries.
Tianyi Zhongke-TK series vacuum parallel concentrator can perform closed evaporation/concentration of multiple samples individually or collectively, recover solvents quickly and effectively, reduce the total evaporation time of multiple samples, increase the processing volume, save operation time and experimental resources, and the parallel evaporator is simple to install and operate, and flexible to use. Because the processing conditions are parallel, the parallelism is also better. The parallel evaporator is mainly used for evaporation and concentration of samples in chemical, pharmaceutical, biological, environmental protection, testing or other industries.
- Product model: TK type
- Manufacturer Type: Manufacturer
- Update time: 2024-07-23
- Number of visits: 6671
- Brand: Tianezk/Tianyi Zhongke
- Temperature range: 0-100℃
- Instrument Type: Automatic quantitative concentrator
- Application Areas: Medical and health care, environmental protection, food, agriculture, pharmaceuticals
- Temperature control accuracy: 0.1±℃
- Price range: 100,000-200,000
- Origin Category: Domestic
- Product Name: Tianyi Zhongke-TK Series Vacuum Parallel Concentrator
- Product Model: TK Series
- Batch processing capacity: 1-48 bits optional
- Pesticide residue analysis: vegetables, fruits, grains, plant tissues, etc.
- Environmental analysis: drinking water, groundwater, pollutants, etc.
- Food and beverages: milk, wine, beer, etc.
- Bioanalysis: serum, plasma, blood, urine, etc.
- Pharmaceutical inspection: Chinese medicine, etc.
- Water bath heating is adopted, which has good temperature uniformity.
- Cover temperature and water temperature are heated independently.
- Planar rotation and oscillation can increase the contact area between the sample and the container, achieving rapid concentration
- Vacuum filtration effectively increases concentration time and improves concentration efficiency.
- Capacitive color LCD display, simple and convenient operation.
- The light can be turned on or off automatically to facilitate observation of the concentration. The light can also be turned off according to the light-shielding properties of the sample.
- Vacuum control parameters can be set automatically or manually, which is convenient for experimental operation.
- The automatic vacuum controller can adjust the vacuum degree, and can also manually control the vacuum degree. It can also increase or decrease the vacuum degree during operation to avoid sample loss caused by vacuum fluctuations.
- The vacuum sealing cover adopts the upward flip-up hovering technology, which can achieve upward flip-up hovering in situ without transferring the sealing cover.
- Rotational oscillation, pressure relief and drainage can be operated automatically or manually. When the instrument is in standby mode, the oscillation, pressure relief and drainage functions can be started manually.
- Continuous working time: more than 8 hours continuously.
- Water bath heating temperature 0-99℃.
- The heating temperature of the vacuum sealing cover is ≥80℃.
- Speed: 0-600rpm.
- Vacuum control accuracy: 1-10 mbar.
- The capacity of the concentrate bottle is 50-800ml, and the fixed volume is 0.5ml or 1ml.
- Sample racks with 9, 16, 24, 36, and 48 positions are available.
- Timing function: automatically stops after concentration is completed and automatically empties the vacuum degree.
- Quantitative function: It will stop automatically after concentration reaches the quantitative volume, and the quantitative volume can be selected as 0.5ml or 1ml.
- Preheating function: The preheating mode can be turned on during the early preparation to allow the water temperature and cover temperature to reach the preset state in advance, effectively saving experimental time.
