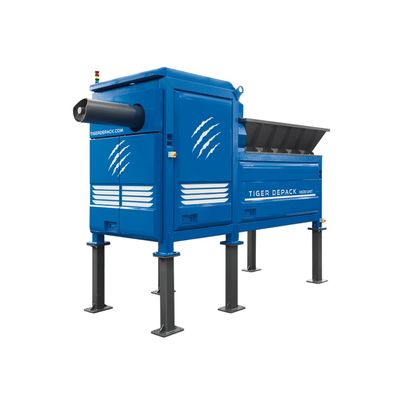

Tiger Depack - Model HS 30 US -Machine for Separating and Depackaging Waste
Small dimensions, high performance: Is the smallest version of the tiger depack range. Born from the specific need to be installed in more restricted space. Features the same separation and depackaging qualities as the larger version.
Most popular related searches
Engine power: 30 kW
Capacity: 3-7 t/h
- L = 189.76 in
- W = 78.74 in
- H = 134.65 in
Dimensions in inch
- Hopper loading height: 88.98 in
- Hopper loading width: 78.74 in
- Plastic discharge height: 78.74 in
Dimensions in inch
- Max Length: 189.76 in
- Max Width: 78.74 in
- Max Frame Height: 107.09 in
- Max Height: 134.65 in
- External Length of Plastic Extractor: 39.37 in
- Frame Length: 150.39 in
- Height of Standard Legs: 27.56 in
- Hopper: Standard hopper AISI 304: 91535.60 in³
- Legs: Standard Leg height: 27.56 in
- Separation: Patented vertical separation block
- Plastic Extraction: Dry fraction extraction screw
- Engines
- ABB engine for the shaft: 30 kW
- Engine with gearmotor for feeding hopper: 5.5 kW
- Engine with gearmotor for extraction screw: 3 kW
- Liquid
- Double water input line: process water line and washing line
- Solenoid valve for the regulation of the incoming water flow
- Liter count
- Electrical and Software Part
- Control panel with touchscreen
- Software
- Soft Starter: 30 kW
- Frequency converter: 4 kW
- Electric cabinet
- Rotation sensor for rotor
Specifications subject to technical changes. Specifications are approximate, illustrations and descriptions may include options that are not part of the standard equipment.
