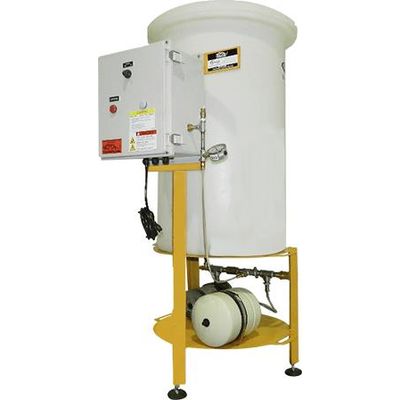

Tigerflow - Glycol Make-Up Unit
Glycol make-up unit maintains glycol solution levels in HVAC systems.
Most popular related searches
stainless steel mesh screen
chilled water system
package pumping system
closed loop water system
HVAC system
relief valve
chilled water
remote monitoring
pump system
level switch
- Certificate of product liability insurance
- Prefabricated and factory tested – NIST traceable test facility
- UL/C-UL listed packaged pumping systems (QCZJ)
- UL standard 508A – standard for industrial control panels
- Touchscreen controller interface
- AWS D1.1 certified structural welders
- Engineered to order designs
- Stock standard units with 55 or 100-gallon tanks
- Relief valve adjustable between 50-125 psi
- Steep pump curve allows for pressure settings up to 100 psi
- Adjustable pressure switch with 30-150 psi set point range, 5-30 psi dead band and visible range scale
- Union ball valves allow for easy maintenance, installation and service
- Strainer with stainless steel mesh screen keeps debris from entering system
- 120V/1 phase power with standard three prong plug eliminates the need for an electrical contractor
- Low level switch protects against pump dry run (NC/NO dry contacts provided for remote monitoring)
- PLC controls for data centers
- Duplex configuration
- 3 phase input power
- Expansion tank – 2.2-gallon 125 PSI rating
- Closed loop heating systems
- Chilled water systems
