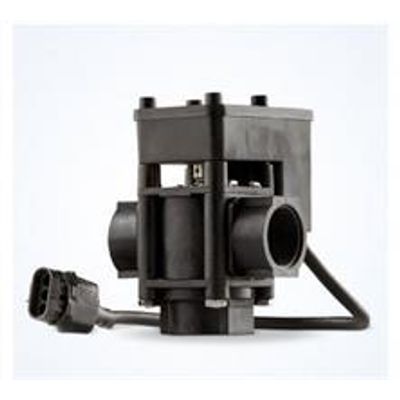

TIR - Model MV.2401 -3-Way High Flows Motorized Valves
The 3-Way Motorized Valves give you multi-directional functionality for high volume flows at medium pressure. They offer quick component attachment and a wide variety of plumbing connections in a lightweight body. Sealed connectors draw minimal amperage.
Most popular related searches
- Type: 3-Way Operating
- Manifold: None
- Sections: Single Valve
- Inlets/Outlets:
- 1" NPT Side Outlets
- 1" NPT Bottom Inlet
- Maximum Pressure*: 150 PSI (1034 kPa)
- GPM: 0-18 (65 LPM)
- Pressure Drop: 5 PSI at 18 GPM
- STD. Currant Draw: 2.5 AMPs
- CV Rating: 8.05
- Open/Close Time: .8 seconds
- Valve Housing: Glass-Filled Nylon
- Wetted Metal Parts: 303 Stainless Steel
- Seals & O-Rings: Viton
- Motor: Totally Enclosed
Protected by Self-Resetting Fuse - Terminals: 12" Wire with 3 Pin Weather Pack Connector
- Repair Kit: KT.2447 - 2401/2403 Viton Repair Kit
