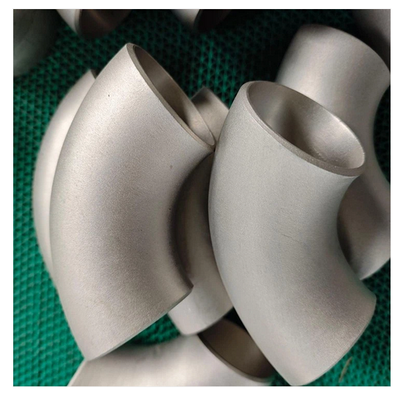

Fuqi - Model Grade 2 -Titanium Elbow
Titanium Grade 2 Elbow. Material: Titanium . Grade: Gr2. OD: 1/2"-60"; 21.34-1500mm; DN6- DN2000. Thickness: Sch5s, Sch10s, Sch40s, STD, Sch40, Sch60, Sch80s, Sch80. Type: 90 Deg Elbow, 45 Deg Elbow. Radius: LR, SR, 1D, 2D, 3D, 5D. Surface Treatment: Pickling, Polished. Standard: ASME B16.9, ASTM B363.
Most popular related searches
Types of Titanium Grade 2 Elbows:
- 90° & 45° Elbows** – For changing flow direction in piping systems.
- Short Radius (SR) & Long Radius (LR) Elbows– LR elbows provide smoother flow.
- Butt Weld, Threaded, or Socket Weld Ends – Depending on connection requirements.
- Seamless or Welded Construction – Seamless offers better pressure resistance.
- Better corrosion resistance than stainless steel (e.g., 316L) in harsh environments.
- Lighter than steel, reducing structural load.
- Non-toxic and biocompatible, ideal for medical uses.
