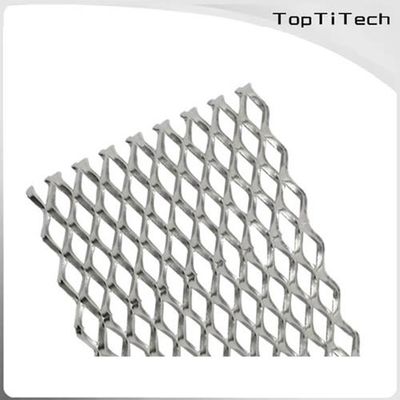

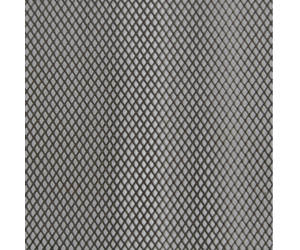

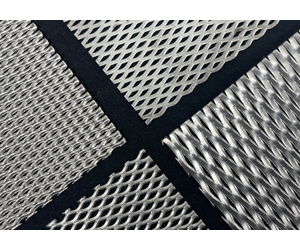

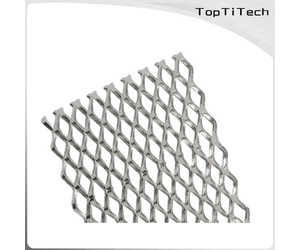

Titanium mesh (titanium plate stretched mesh) is also called titanium rhombus mesh. Using the most recent technology, it is constructed from the original steel plate by cutting and extending. Its mesh body is more lightweight and capable of supporting more weight. Due to the difficulty in drawing titanium wires, the thinnest titanium wires that are relatively skilled in drawing can reach 0.1mm. Titanium wires have low elongation, high strength, high elasticity, and low flexibility.

The chemical liquid filter made of titanium mesh can withstand the test of high temperature and high humidity. Titanium mesh can be used to manufacture demister mesh, demister, titanium mesh packing, filter mesh, and titanium filter cartridge and filter column can be manufactured by combined welding. Titanium mesh is primarily utilized for gas, liquid, and other media separation as well as screening and filtration in environments with acid and alkali.

Material: titanium plate

Hole type: rhombus, hexagon, etc. according to customer requirements

Plate thickness: 0.1-10mm

Mesh: 0.5*112 36485*1010*2020*5025*5030*6040*80

50*100 customized

Size: According to customer's requirements

It has no rust, beautiful color, gorgeous color, beautiful appearance, strong and durable, high quality, high-grade

High characteristics, smooth mesh surface, uniform mesh, titanium mesh produced by machining, the shape of the hole is diamond-shaped hole, large opening rate, large surface area, high strength

As a mud net in the petroleum industry, as a sieve filter, for electroplating in the chemical fiber industry, and in the mining, petroleum, chemical, food, pharmaceutical, machinery manufacturing, and other industries, it is used for screening and filtering under acidic and alkaline environmental conditions.

Introduction to related terms

Short Pitch: The distance between the node centers along the short diamond diagonal.

Long Pitch: The distance between the node centers along the long rhombus diagonal.Wire stem width: The side stem width of the diamond-shaped hole in the expanded metal mesh is the length of the metal plate used to make a wire stem.

Plate thickness: the thickness of the original steel plate.
