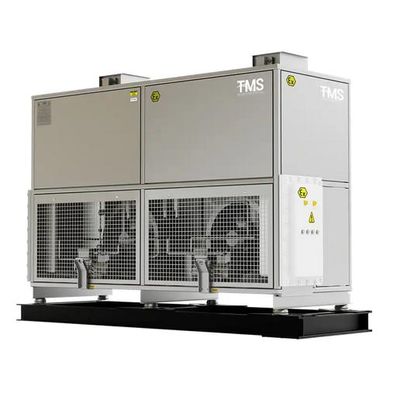

TMS - Model ATEX Series -Explosion Proof Cooling Units
Onshore & offshore oil platforms, refineries, nuclear centrals and similar power plants require the highest level of safety. For such applications, flame tightness is a must and all the materials require ex-proof ones.
All of our ATEX products are subjected to a certification process according to the serial numbers and classifications specified in the project phase. All tests are performed and certificate approvals are obtained by third party organizations. The following ATEX classification is communicated by customers in order to provide the most accurate product:
- II2GExdeIICT3Gb
- II: Other explosive areas
- 2: Zone 1 and Zone 2
- G: Gas
- Ex: European standard
- also; d: Flame-proof chassis, e: Increased safet
- IIC: Explosion Group
- T3: Surface temperature max 200 ° C
- Gb: Component security level (EPL)
ATEX classified products area Zonel and Zone2, surface temperatures T1, T2, T3, T4 and explosive groups IIA, IIB, IIC are produced with certification. Electrical heater or heat pump options are available. APU filtration systems can be integrated to capture harmful gases.
