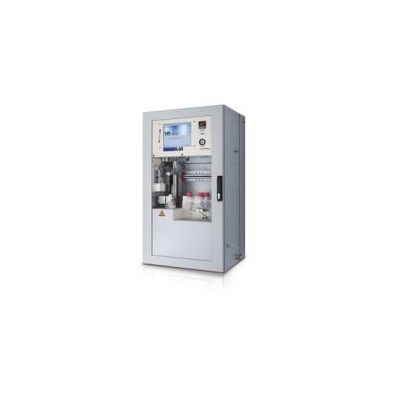

LAR - Model QuickTONultra -TN Analyzer for Wastewater and Process Control
The QuickTONultra is the ultimate online TNb analyzer for the determination of total nitrogen bound (TNb) in waste water and process water applications.
Most popular related searches
de-icing water
industrial wastewater
total nitrogen
total nitrogen analyzer
total nitrogen bound
process water
drinking water process
drinking water
hazardous area
TNb analyzer
- Measurement range: 0 - 200 mg/l N
- Response time: 1 - 2 minutes
- Highest combustion temperature (1,200°C) available on the market
- Measurement of complete samples incl. solids/ particles
- Excellent detection value from ammonia and nitrate nitrogen
- High salt concentrations possible
- Catalyst-free technique
- No filtration necessary
- No memory effects
- According to DIN EN 12260:2003 and ISO/TR 11905-2:1997
LAR`s total nitrogen analyzer is suitable for a variety of applications and types of water:
- Water Influent
- Water Effluent
- Discharge Control
- Industrial Waste Water
- De-Icing Water
- Drinking Water
- Groundwater
- Process Water
- High Salt Concentrations
- Cooling Water
- Detailed application overview
Using analyzer options, the measurement system is adaptable for every measurement challenge.
- FlowSampler
- Multi-stream measurement for up to 6 sample streams
- Combination with COD and TOC detection
For safe operation in hazardous areas, there are different protection housings available:
- IP54 (Standard)
- NEMA 4X
- ATEX Zone I
- ATEX Zone II
- IECEx
