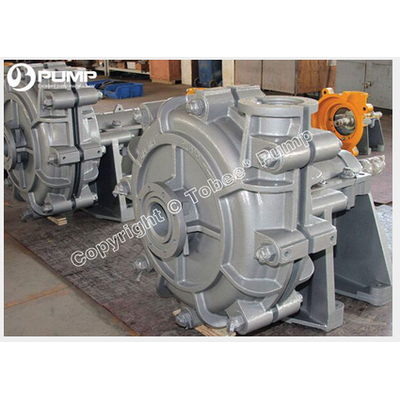

Tobee - Model THH -High Head Slurry Pump
Tobee THH High Head Slurry Pumps are end-suction, split-case, centrifugal slurry pumps, Extensive exterior ribbing allows for higher head and higher pressure pumping system, and bulked up wetted end parts can handle the toughest aplications, Commonly used for long distance transport lines, The THH pumps can often satisfy working condition with a single pump where others require multiple pumps in series.
Most popular related searches
slurry pump
end suction slurry pump
centrifugal slurry pump
head pump
split-case slurry pump
end suction centrifugal pump
split case centrifugal pump
wear resistance
end suction pump
pump system
- Size: 1" to 6"
- Capacity: 16.2-1008m3/h
- Head: 12-118m
- Handing solids: 0-70mm
- Casing pressure: Max.750 psig
- Materials: Hyper chrome alloy etc.
- High head, high pressure centrifugal end suction slurry pump design.
- Ductile iron fully lined casing provides durability, strength and long service life.
- Hyper wear resistance materials for longtime worklife.
- Multi-stage high pressure operation allowed.
- Heavy duty construction with through-bolt design provides ease of maintenance and results in less down time
- Large diameter, slow turning, high efficiency impellers result in maximum wear life and lower operating costs
- Large, open internal passages maximize wear life and lower operating costs
- Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
