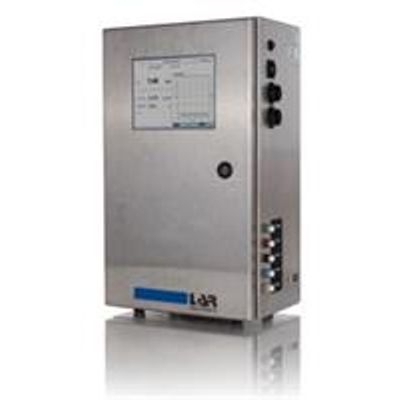

LAR - Model QuickTOCtrace -TOC Analyzer for (ultra-)pure Water
LAR`s TOC analyzer QuickTOCtrace is a reliable analyzer for the lowest measuring ranges, which uses uv oxidation and differential conductivity measurement to determine organic contamination, making it ideal for TOC measurement of (ultra-)pure water. It is a compact and intuitive analyzer with a short reaction time - first results are available within 30 seconds. Its comparatively low initial cost and, due to its robustness, low operating costs increase the profitability of your manufacturing processes.
Most popular related searches
ultrapure water
pure water
TOC analyzer
total organic carbon analysis
ultrapure process water
boiler feed water
organic carbon analysis
total organic carbon
boiler water condensate
boiler water feed
- Measuring range 0.1 to 1,000 ppb TOC
- Short reaction time → T90 within 30 seconds
- Continuous measurement (every 2 seconds)
- Userfriendly software interface with 8“ touch screen
- Remote service → connection to internet for service analysis
- Low operating costs → long lasting UV lamp
- Easy to maintain → easy to calibrate (1 time per year)
- Easy system validation with fully automatic SST (optional)
- Viewer → comprehensive data storage
LAR`s TOC analyzer is suitable for a variety of applications and water types::
- pure water
- ultra pure water
- process water
- boiler feed water
- condensate return
- detailed application overview
Options extend the functionality of the analyzer.
- Multi-stream measurement for up to 3 sample streams
- Calibration solutions
- SST-Kit
- Heat-exchanger for samples with > 50°C
The housing of the analyzer is characterized by the following specifications.
- Housing Stainless Steel IP 20 (standard), IP 54 (optional)
- Dimensions 300 x 500 x 200 mm (W x H x D)
- Weight ca. 7 kg
