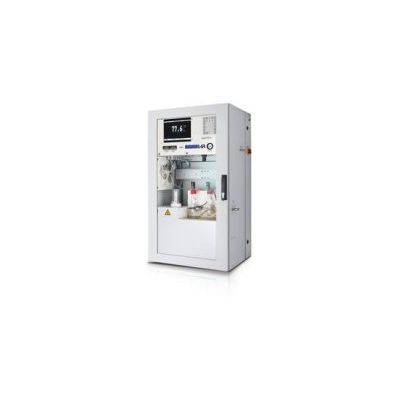

LAR - Model QuickTOCNPO -TOC, TN, TP and COD Analyzer
LAR`s QuickTOCNPO is the ultimate online analyzer for the determination of total organic carbon (TOC), total bound nitrogen (TNb), total phosphorus (TP) and the chemical oxygen demand (COD). TOC, TNb, TP and COD – combined in one analyzer. Cost efficient monitoring of WWTP‘s effluent.
Most popular related searches
COD analyzer
total organic carbon
chemical oxygen demand
water monitoring industry
surface water monitoring
total bound nitrogen
total nitrogen
total phosphorus
TOC/TNb
hazardous area
- Measurement range: TOC: 0.1 - 200 mg/l, TNb: 0.1 - 200 mg/l, TP: 0.01 - 30 mg/l, COD: 1 - 600 mg/l
- Response time: TOC / COD: 2 - 3 min, TNb: 1 - 3 min, TP: 10 - 15 min
- Highest combustion temperature (1,200°C) available on the market
- Photometric molybdenum-blue-method
- Determination of all 4 parameters at the same time
- Number of parameters are selectable
- No filtration necessary
- No memory effects
- Very low maintenance and operational costs
- According to DIN EN 1484:1997-08 (TOC), ISO 8245:1999-03 (TOC), EPA 415.1 (TOC), DIN EN 12260:2003 (TNb), ISO/TR 11905-2:1997 (TNb), DIN EN ISO 6878:2004-09 (TP), DIN EN ISO 15681-1:2005-05 (TP) and DIN EN ISO 15681-2:2005-05 (TP)
LAR`s TOC TN TP COD analyzer is suitable for following applications and types of water:
- WWTP control
- Process control
- Surface water monitoring
- Industrial and municipal WWTP
- Detailed application overview
Using analyzer options, the measurement system is adaptable for every measurement challenge.
- FlowSampler
- Centrifugal separator
- Single-parameter determination available
- Combinations of up to 4 parameters obtainable (TOC, TN, TP and COD)
For safe operation in hazardous areas, there are different protection housings available:
- IP54 (Standard)
- NEMA 4X
- ATEX Zone I
- ATEX Zone II
