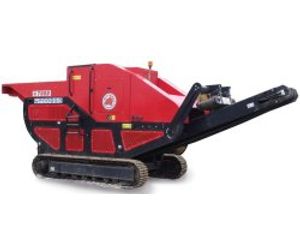

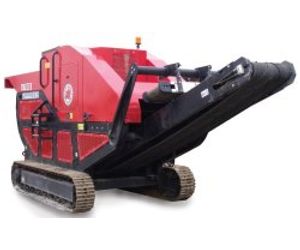

Red Rhino - Model 7000 Plus Series -Toggle Jaw Crusher

The 7000 Plus has a jaw opening of 700mm x 400mm.

• Powered by Deutz 70hp Diesel Engine
• Fuel consumption only 10 litres per hour
• Wireless remote control system (optional cable)
• Output can range from 15mm to 140mm
• CE Marked

Material:

• Can crush concrete, kerbstone, marble, paving slabs, bricks, tiles, blocks, stone, porcelain, flint, gravestones, etc.
• Grizzly bars in the vibrating feeder remove the fines from the crushing process.
• These crushers are ideal for waste transfer stations, skip companies and plant hire companies who have limited space.

Output: up to 45 tonnes per hour has been achieved but operating conditions, size of the product and operator efficiency can effect the output

Optional Extras

• Magnet Conveyot to remove the rebar
• Motorised screener
• Non Motorised screener

All the great features of the 7000 series but with a vibratory tray feeder. Ideal for loading by either a skid steer or excavator.

Purchasing a 7000 Plus for recycling demolition and construction waste is a cost efficient method of avoiding large landfill costs, onsite recycling and reducing demolition rubble to a useable product. Crush your rubble for less than £1 per tonne.

Simply drive the crusher into position, select the desired output size, start the crusher and conveyor system and start to crush – up and crushing in less than 5 minutes.

By adding a magnet conveyor to this crusher there is the added benefit of removing the steel found in your rubble but also recycling this “waste” steel to the scrap yards for additional financial value gain.

• Jaw aperture of 700mm x 400mm
• Output size choice from 15mm to 120mm
• Deutz 70 hp Air cooled Diesel Engine
• Fuel consumption approx 10 litres per hour
• Output can be up to 45 tonnes per hour
• Wireless remote control system for all functions
• CE marked
