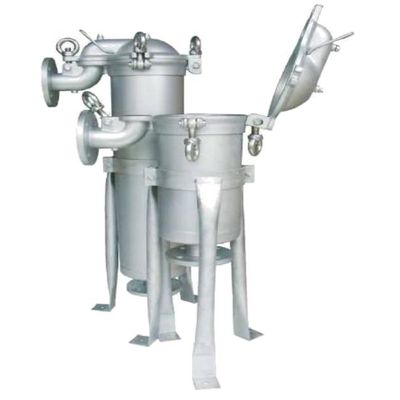

Suzhou-Kosa - Model FZ -Top Entry Bag Filter Housing
Top Entry Bag Filter Housing Top inlet bag filter housing is the best bag sealing for most challenging applications, the top inlet bag filter designed to give you perfect 360 degree sealing of plastic collar fully welded filter bag sit inside the filter to ensure absolute no by pass, it gives you the top performance in your most challenging liquid filtration process.
Most popular related searches
bag filter housing
bag filter
filter housing
filter bag
bag housing
filter bag housing
baghouse filter
liquid filtration bag
liquid filtration
welding filter
- Top entry design
- Two housing sizes for filter bags sizes 01 and 02
- Cover firmly seals and holds the filter bag in place
- Four eyebolts for tight closure and stable construction, superior bag sealing with no bypass
- Maximum operating pressure: 10 bar
- Maximum operating temperature: 160 Deg C with Viton seals
- Inlet/outlet: 2 inch flange
- Material of construction: SS304, SS316 or carbon steel
- Surface finish: SS-bead blasted or mechanical polish, CS-painted
- Mounting legs to adjust vessel height
