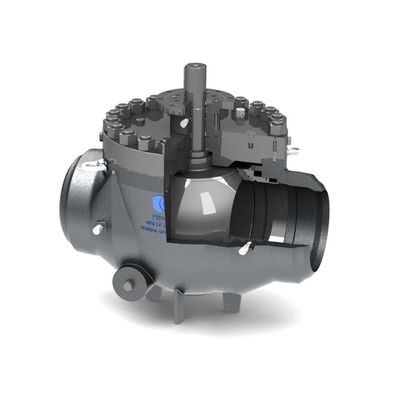

PibiviesseTop Entry Trunnion Mounted On-Off Ball Valve

SHARE

One of PIBIVIESSE core products, the Top Entry Ball valve is available in several design options and material grades for Cryogenic, High Temperature, Subsea and Control applications. 1 piece body with bolted bonnet, soft or metal seated, firesafe, flexible design suitable to meet any application and specification requirement.

Most popular related searches

Product Design & Range

  • 1 piece body with integral ends
  • Trunnion Mounted Ball
  • API 6D size range from 1" to 64", pressure ratings ASME cl. 150# to 2500#
  • API 6A size range from 1.13/16" to 20", pressure ratings API 6A 2000 to 15000psi
  • Flanged RF/RTJ, Compact, Clamped Hubs and Butt-Weld end
  • Material grades: CS, LTCS, 316ss, 6Mo, Duplex, S-Duplex, Monel, Nickel Alloys, Titanium
  • Design Temperature range -46 / 230°C

Applications

Onshore LNG Plant and Offshore FLNG, Onshore Oil and Gas Production, Onshore Oil and Gas Transportation, Refining & Petrochemical, Onshore Gas Treatment, Offshore Platforms & FPSOs, Onshore Storage, Power Generation, Hydropower, Desalination (Water Service)

  • Platform
  • FPSO
  • FLNG
  • Production
  • Transportation
  • Treatment
  • Storage
  • LNG Plant
  • Refining & Petrol
  • Water Storage
  • Power Generation
  • Bolted Bonnet
  • Suitable for in-line maintenance
  • Full and Reduced Bore
  • Long Pattern
  • Spring Energized Floating seats
  • Bidirectional
  • Anti-blow out stem
  • Anti-static design
  • Emergency sealant injection on stem and seats
  • Fire Safe
  • Soft, Metal-to-Metal or Primary Metal Secondary Soft (PMSS) sealing
  • SPE (Self Relieving), DIB-1, DIB-2 seat design
  • See the enclosed Valve Data Sheet for the complete product design features and options available.
