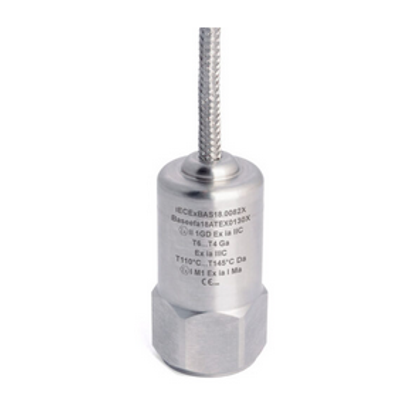

Hansford - Model ExTb -HS-150IT -Top Exit Integral Braided Cable Intrinsically Safe Accelerometer

Key Features

• Intrinsically Safe with European, USA, Indian and Australian approvals
• Temperature output
• For use with data collector
• Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

• Sealing : IP65
• EMC : EN61326-1:2013
• Case Material : Stainless Steel
• Sensitivity Options: 010 – 10mV/g, 030 – 30mV/g, 050 – 50mV/g, 100 – 100mV/g, 250 – 250mV/g, 500 – 500mV/g
• Sensing Element/Construction: PZT/Shear
• Weight: 106gms / 3.7 oz (nominal) body only
• Top/Side Entry: Top Entry
• Design: Premium
• Feature: Intrinsically Safe
• Connector/Cable Type: Braided Cable
• Output: Single Output
• Axis: Single (Standard)
