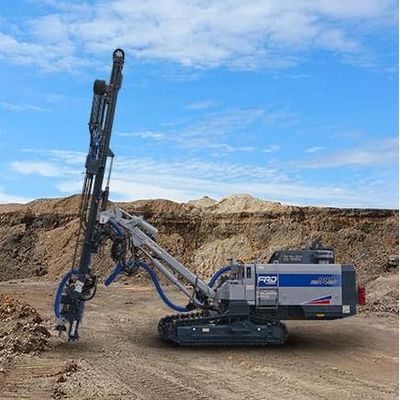

Furukawa - Model HCR900-ESV -Top-Hammer Drill
Utilizing a Cummins® Tier-IV EPA compliant engine, the HCR900-ESV combines higher performance with fuel efficiency. Simple, durable and efficient, the HCR900-ESV with extendable boom incorporates a self-adjusting drill system that ensures high productivity no matter what the drilling situation. By automatically controlling the impact force, feed force, rotation force and dual damper pressure, the HCR900-ESV continuously adapts to the changing rock conditions, increasing drilling performance and the life of drill tools while decreasing fuel consumption.
Most popular related searches
water dust control system
water dust control
dust control system
dust suppressant
dust control
noise and vibration
drill hammer
rock drilling
dust leak
drilling tool
- The Furukawa HD818 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing percussion frequency by 24% versus the HD709 drifter, its predecessor.
- Ergonomically designed to minimize operator fatigue. The engine, compressor and hydraulic oil temperature gauges are highly visible, allowing the operator to monitor machine functions while remaining focused on the drilling.
- Rod Rack allows you to store four drill steels plus one starter rod.
- The dust collector is equipped with an effective pre-cleaner that has the same suction capacity as previous models and reduces drilling dust leakage. An optional water/dust suppression system is available for difficult drilling conditions.
- Low emission, Tier-IV Cummins® engine meets strict North American exhaust emissions regulations.
- Winch-ready frame adds application versatility.
- Overall weight (A) *1 in lbs. (kg): 24,317 lbs (11,030 kgs)
- Overall weight (B) *2 in lbs. (kg): 24,978 lbs (11,330 kgs)
- Overall length in inches (mm): 32′7″ (9,940 mm)
- Shipping length in inches (mm): 31′10″ (9,700 mm)
- Overall width in inches (mm): 10′8″ (3,245 mm)
- Shipping width in inches (mm): 8′5″ (2,570 mm)
- Overall height in inches (mm): 9′6″ (2,885 mm)
- Shipping height in inches (mm): 9′6″ (2,885 mm)
- Water / Dust Suppression System – 35 gal
- Water / Dust Suppression System – 70 gal
- 2D Angle Indicator
- Rear Bumper
- Cold Weather Kit (Esper, Webasto)
- Heating Pad
