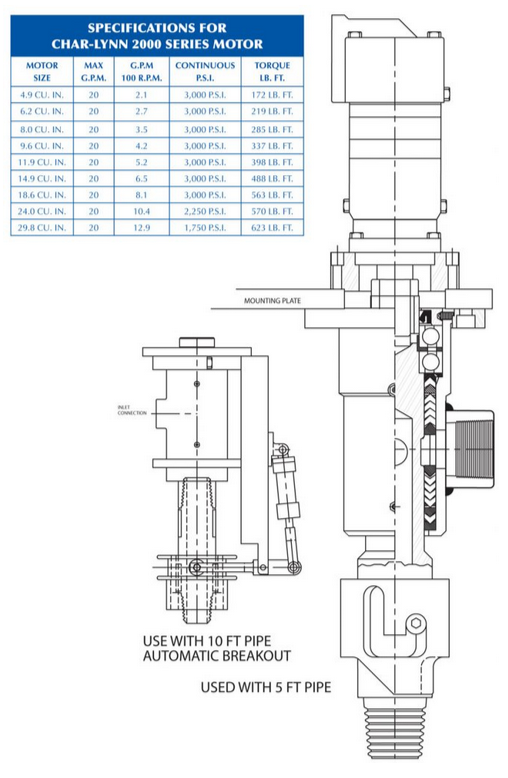

NHM - Model MARK I-II-III -Top Head Drive Swivel for Small Hydraulic Rigs
The Economy Top Head Drive Swivel. A simplified design to adapt to small hydraulic rigs and offers an economical way to install a top head drive.
Most popular related searches
hydraulic rig
shot hole drill
water well monitor
water well monitoring
water monitoring well
well monitoring
auger drilling
well drilling
water well
monitoring well
Designed for:
- Auger Drilling
- Shot Hole Drilling
- Heat Pump Drilling
- Test Holes
- Soil Sampling
- Small Water Wells
- Monitor Well Drilling
NOTE: Wedgelock connections covered by N.H.M., Inc. U.S. and foreign patent NO. 5,409,324; 5,588,772; 187552; and patent pending
MARK I ROTARY HEAD DATA:
- Pull down capacity: 4,800 LBS
- Pull back capacity: 4,800 LBS
- Watercourse Standard: 1-3/16″ I.D.
- Working pressure: 750 P.S.I.
MARK II ROTARY HEAD DATA:
- Pull down capacity: 5,700 LBS
- Pull back capacity: 5,700 LBS
- Watercourse Standard: 1-3/16″ I.D.
- Working pressure: 750 P.S.I.
MARK III ROTARY HEAD DATA:
- Pull down capacity: 5,700 LBS
- Pull back capacity: 9,513 LBS
- Watercourse Standard: 1-3/16″ I.D.
- Working pressure: 750 P.S.I.
