Magtrol - Model TM 300 Series -Torque Sensors

SHARE
Magtrol’s In-Line Torque Transducers provide extremely accurate torque and speed measurement over a very broad range. Each model has an integrated conditioning electronic module providing a ±5 VDC (±10 VDC) torque output and an open collector speed output. Magtrol Torque Transducers are very reliable, providing high overload protection, excellent long term stability and high noise immunity. All transducer models employ our unique non-contact differential transformer torque measuring technology. This measuring technology offers many benefits, most notably that no electronic components rotate during operation. To provide customers with several price/performance options, Magtrol offers three torque transducer models: basic model (TMB Series), high accuracy (TM Series) and high speed with high accuracy (TMHS Series). Each transducer consists of a hardened stainless steel shaft with smooth, splined or keyway shaft ends, an anodized aluminium housing containing the guide bearings and an electronic measurement conditioner. The integrated electronic circuit, supplied by single DC voltage, provides torque and speed signals without any additional amplifier. The transducer is a stand-alone measuring chain. Connections are made by means of a 6-pole male connector mounted on the housing. A removable aluminium base (delivered as standard with TM Series and TMHS Series models, and as an option for TMB Series transducers) allows fixed mounting of the transducer.
Most popular related searches
torque monitoring
torque transducer
noise modeling

Magtrol’s In-Line Torque Transducers provide extremely accurate torque and speed measurement over a very broad range. Each model has an integrated conditioning electronic module providing a ±5 VDC (±10 VDC) torque output and an open collector speed output. Magtrol Torque Transducers are very reliable, providing high overload protection, excellent long term stability and high noise immunity.

All transducer models employ our unique non-contact differential transformer torque measuring technology. This measuring technology offers many benefits, most notably that no electronic components rotate during operation.

To provide customers with several price/performance options, Magtrol offers three torque transducer models: basic model (TMB Series), high accuracy (TM Series) and high speed with high accuracy (TMHS Series).

Each transducer consists of a hardened stainless steel shaft with smooth, splined or keyway shaft ends, an anodized aluminium housing containing the guide bearings and an electronic measurement conditioner.

The integrated electronic circuit, supplied by single DC voltage, provides torque and speed signals without any additional amplifier. The transducer is a stand-alone measuring chain. Connections are made by means of a 6-pole male connector mounted on the housing. A removable aluminium base (delivered as standard with TM Series and TMHS Series models, and as an option for TMB Series transducers) allows fixed mounting of the transducer.

  • Integrated Torque and Speed Conditioning

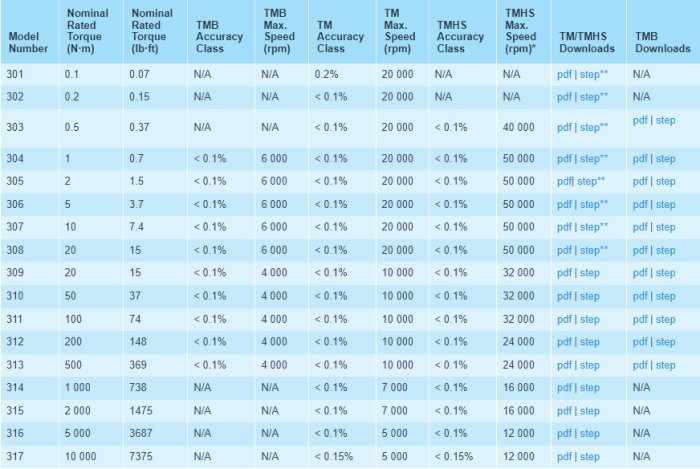

  • Torque Range: 0.1 N·m … 10 kN·m (0.07 lb·ft … 7375 lb·ft)
  • Accuracy: < 0.1%
  • Overload Capacity: 200%
  • Breaking limit: up to 400%
  • High Speed Applications: up to 50 000 rpm
  • Non-Contact (no slip rings)
  • No Electronic Components in Rotation
  • No Electrical Noise
  • Single DC Power Supply: 20 … 32 VDC
  • Immediate Speed Detection
  • Adjustable Torque Signal Frequency Pass Band up to 5 kHz
  • Built-in Test Function
  • Stainless Steel Shaft
  • EMC Susceptibility Conforms to European Standards
