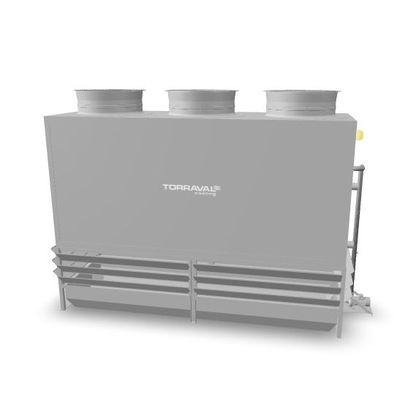

Torraval - Model PMS Series -Open Circuit Cooling Towers

FromTorraval Cooling S.L - part of The MITA group

SHARE

The PMS series is suggested for small size plants, all models are totally pre-assembled at our factory.

Most popular related searches

open circuit cooling tower

cooling tower circuit

water containment

open cooling circuit

water suspended solids

suspended solids water

manhole inspection

Axial motor-fan with direct coupling, low installed power, low noise levels.
Tower body and tank entirely made of fibreglass, corrosion-free material.
Distribution system in PVC, PP or PE equipped with wide non-clogging PP spray nozzles.
Fill pack with different kinds of air/water channels, suitable for the use with different water types.
Capacity: from 18 to 860 KW (indicative capacity referring to a machine, thermal gradient 5°C).

For all basic models the following special versions are available:

ATT: for high temperature water, with max peaks of 80°C
N: for water containing low quantities of suspended solids
N-ATT: for high temperature water (with max peaks of 80°C containing low quantities of suspended solids.
GS: for water containing large quantities of suspended solid

The following accessories and/or construction variants are available for all models under request:

Resistencia eléctrica trifásica con un termostato de control
Three-phase heating element with control thermostat
Minimum level cut-out switch
Two-speed motor with graduated thermostat, automatic cascade control panel, or control system with frequency inverter
Manhole for easy inspection and access to the internal components
