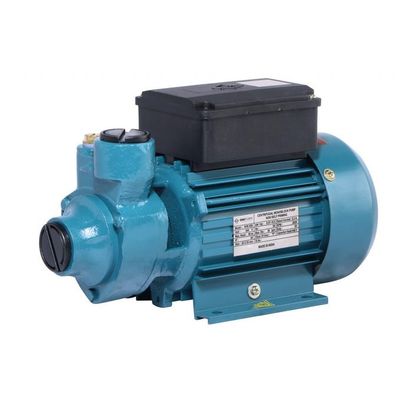

Torren - Non Self Priming Peripheral Pumps
TORREN Peripheral Pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high grade ‘F’ class enameled copper wires that are suitable for wide voltage fluctuations. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
Most popular related searches
peripheral pump
copper wire
domestic water supply
precision ball
domestic water
water supply
self-priming pump
bearing lubrication
precision bearing
sprinkler water
- Power Range: 0.5HP-1HP
- Phase / Voltage Range: Single-phase, 200-240 V, 50 Hz, A.C Supply
- Maximum total head: 50 meters
- Maximum flow rate: 3000 lph
- Suction & Delivery Sizes: 0.75”x0.75”,1”x 1” (20 x 20 , 25 x 25 mm)
- Body: Die-Cast / Extruded TEFC
- Insert: Brass/ SS insert
- Winding: ‘F’ Class Insulation Copper Wire
- Shaft: Stainless Steel 410
- Motor Protector: Fitted With TOP
- Bearing: Pre Lubricated Double Sealed Ball Bearing
- Impeller: Brass Forged Impeller
- Fitted with Thermal Overload Protector (TOP) to prevent burning.
- Noiseless Operations.
- High grade ‘F’ class enameled copper wires
- Suitable for wide Voltage fluctuations
- Minimal power consumption
- Can be easily dismantled and repaired.
- Sturdy and Compact Design.
- Pre Lubricated Double Sealed Precision Ball Bearing.
- Forged Brass impellers.
- Dynamically balanced rotating parts.
- Corrosion-resistant SS/Brass insert in the pump.
- Pressure Boosting.
- Small gardens/ Sprinkler
- Domestic Water Supply
- Small gardens/ Sprinkler
- Fountains
- Construction
- Part Name: Material
- Pump Casing/Bracket: Cast Iron
- Motor Frame: Die-Cast / Aluminum
- Impeller: Forged Brass
- Shaft: Stainless Steel 410 / EN 8
- Sealing: Mechanical Seal (Carbon & Ceramic)
