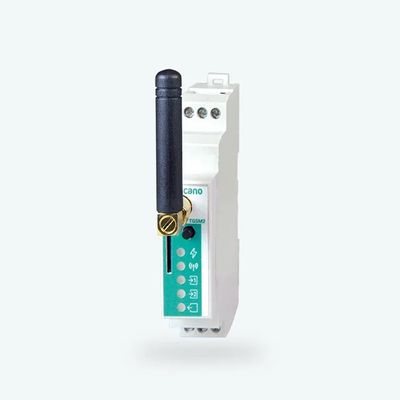

Toscano - Model TGSM2 -Communication Module Via GSM
Communication module via GSM. 2 digital inputs and 1 relay output. Alimentación 9-24VAC/12-36VDC. DIN rail mounting. Antenna included. Battery Li-Ion 3.7V 500mAh. Industrial control via GSM. Allows easy and efficient monitoring of remote stations.
Most popular related searches
- Power supply at 9-24 Vac / 12-36 Vdc. They incorporate an internal battery. In case of network outage, it sends an SMS alert.
- Antenna included.
- Control and notification of the different device statuses is done via text messages (SMS).
- Digital inputs: 2.
- Relay outputs: 1.
- Transmits alarms, active digital signals, network failure, etc.
- DIN rail mounting.
SPECIFICATIONS: VALUE
- Feeding: Internal Li-Ion battery 3.7 V 500 mAh AC 9...24 V / DC 12...36 V
- Antenna: SMA elbow antenna
- Consumption: 5 W
- Frequency of work: 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
- Transmission distance: According to coverage
- Dimensions (mm) / Weight: 92 X 17,5 X 64/ 80 g
