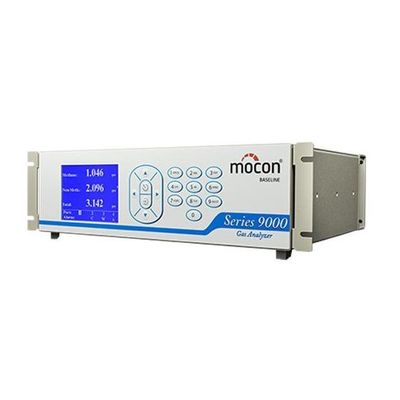

AMETEK MOCON - Model 9000 -Total Hydrocarbon Analyzer

Gaseous Hydrocarbon Analyzer

• Unlimited applications
• Accurate, continuous, detection
• FlowGuard control of fuel, air, and sample with automatic shut-off
• Graphical LCD display with easy to use menu

Detection limits down to < 10 ppb. User-programmable ranges from 1 ppm up to 100% as methane (CH4) are factory-configured per the customer’s application to facilitate installation and setup.

Using a Flame Ionization Detector (FID), AMETEK MOCON`s FlowGuard electronic control regulates the delivery of fuel, air, and a small portion of the sample gas, to the FID. During the combustion process, organic or hydrocarbon-based gases in the sample are ionized, detected by the instrument, and then reported as a concentration. The automatic calibration feature enhances the long-term analytical stability of the instrument.

All instrument parameters are reported clearly and continually refreshed on a large, graphical LCD display. Using analog, digital, and logic output communication capabilities, analytical information from the analyzer can be acquired using an external PC and a simple communications program such as Windows® HyperTerminal or the analyzer can output binary or ASCII formats directly to a data acquisition system or PLC. Every Baseline 9000 analyzer includes AMETEK MOCON`s free PC utility 9000 Keeper used for storing and uploading multiple methods, as well as sending configuration settings, directly to the analyzer.

Automated Control Features

• Automatic FID ignition
• FlowGuard control of fuel, air, and sample with automatic shut-off
• Electronic back-pressure regulator with sample bypass system
• Automatic calibration at user-defined intervals

Versatile Platform

• Graphic LCD display with easy to use menu
• Benchtop or rack-mountable
• Single or multi-point sampling
• Ethernet and serial customizable output
• Programmable analog output ranges
• Programmable relays for diagnostics, concentration, alarms, and events

Baseline 9000 Total Hydrocarbon Analyzer: Units

• Detector: Flame Ionization (FID)
• Ranges
• User definable based upon calibration (as methane):
• Very Low - 0.01 ppm to 200 ppm
• Low - 0.1 ppm to 2,000ppm
• Medium - 0.3 ppm to 20,000 ppm
• High - 0.003% to 100%
• Accuracy, Repeatability: ±1% full-scale
• Drift, Zero: ±0.025% full-scale, 24 hours
• Drift, Span: ±1% full-scale, 24 hours
• Response Time: T90 < 5 seconds
• Sampling: Internal single or multi-point, pump optional
• Alarms: Multilevel concentration and fault alarms, audible and visual
• Calibration: Programmable automatic or manual calibration
• Support Gas Requirement
• UHP Hydrogen (H2) - 35 cc/min
• Zero Air - 175 cc/min
• Span gas - methane is typical
• Fuel blend options available
• Display: Graphical LCD, 3.4” x 4.5” (8.64 cm x 11.43 cm)
• Outputs, Standard
• RS-232
• LAN/Ethernet
• Analog, 1 programmable 0-20mA/4-20mA isolated output
• Relays, 5 programmable Form A relays rated to 3A @230VAC
• Outputs, Optional
• 3 additional Analog outputs
• 5 additional Relays
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Operating Humidity: 0 to 95% (non-condensing)
• Configuration: Benchtop or 19” (48.3cm) rack-mount, 3U

Other Specifications (all models):

• Physical Specifications
• 5.25” H x 19” W x 16.25” D (13.02 cm x 48.26 cm x 41.28 cm)
• <20 Lbs. (9.07 kg)
• Electrical Requirements
• Voltage: 100 - 240 VAC 50/60 Hz, 1 A

Preventive Maintenance Kit

• Includes all parts potentially needed on-hand

Gas Generators

• Hydrogen generators
• Zero Air generators

Software

• 9000 Keeper provided for method switching
