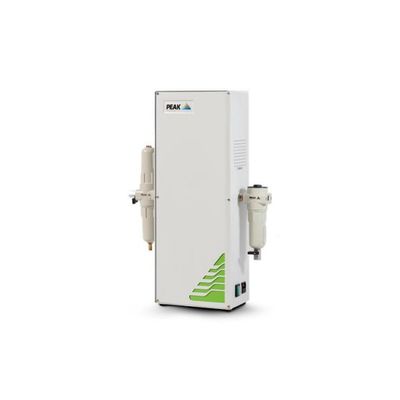

Peak Scientific - Model TOC 1500 HP -Total Organic Carbon Generator

FromPEAK Scientific Instruments Ltd

SHARE

Peak Scientific’s TOC range of specialist generators have been designed specifically to supply clean, dry, carbon dioxide and methane free air for Total Organic Carbon analyzers. Delivering carrier or combustion gas from an external air supply, these generators are available in two models, depending on your requirement, the standard model is suitable for non-purgeable organic carbon (NPOC) whilst the HP model is suitable for TC-IC process Total Organic Carbon analyzers.

Most popular related searches

total organic carbon

total organic carbon analyzer

organic carbon analyzer

non-purgeable organic carbons

total carbon analyzer

zero air generator

carbon analyzer

organics analyzer

particulate filter

Produces clean, dry, hydrocarbon and carbon dioxide free air
Ideal for TC-IC process TOC analyzers
Performs 24/7 if needed
Few moving parts means little maintenance required and ensures long life of the generator
Completely silent in operation
Minimal set-up required
Can be supported by Precision Air Compressor
12 month comprehensive on-site warranty

Gas

Gas Type: Air
Max Gas Flow: 1.5L/min
Max Output Pressure: 80psi/5.5bar
Max Purity: <1ppm CO2/ 0.1ppm THC

Site & installation

Gas Outlets Fitting: 1x 1/4” BSP Female
Min Inlet Pressure: 100psi/6.9bar
Max Inlet Pressure: 120psi/8.3bar
Power Consumption: 115 W
Voltage: 115 / 230 V ± 10%
Frequency: 50 / 60 Hz
Current: 2.6 / 5.2 A
Max Operating Temp: 25°C / 77°F
Accreditations: CE

Dimensions & weight

Size (HxWxD) mm: 620 x 430 x 410 mm
Size (HxWxD) Inches: 24.4 x 16.9 x 16.1 inches
Generator Weight: 57kg / 125.4lbs

Service requirements

Annual replacement of particulate filters
