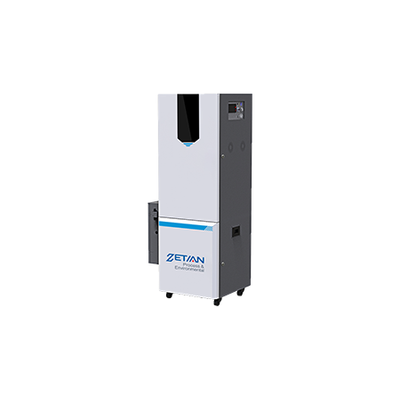

Zetian - Model WDet-5000TOC -Total Organic Carbon Water Quality Online Analyzer
WDet-5000TOC Total Organic Carbon Water Quality Online Analyzer is a new kind of automatic TOC online analyzer. Based on our Injection Pump Metering Platform, it adopts High-temperature Catalytic Combustion Oxidation Method, combined with gas purification device and Non-Dispersive Infrared CO2 Absorption Technology to convert organics in the sample into CO2 for measurement. It realizes automatic TOC online monitoring of high accuracy, low detection limit, high stability and less maintenance.
Most popular related searches
online water quality analyzer
total organic carbon
water quality analyzer
water quality
gas purification system
NDIR hydrocarbons
COD monitoring
CO2 detection system
TOC online analyzer
total organic carbon analyzer
- Use injection pump and ten-way rotary valve to extract sample quantificationally; high accuracy and less cross contamination between the reagents.
- Adopt new NDIR CO2 detection technology, realizing high stability.
- Multiple modes: TC, IC, TOC, NPOC can be measured in the same reactor, switching as required.
- Direct switching between TOC and COD can be achieved simultaneously, realizing online measurement of COD in the sample.
- Multi-channel valve terminal of high integration, with simple and fast maintenance, disassembly, assembly and cleaning.
- Built-in check module, equipped with zero check and span check.
- Store data of ten years; support 2 different ways of protocols for uploading at the same time.
- Less space occupying, modular design of high integration, easy for maintenance and can be used for integration with water station system.
- Applied to TOC online monitoring in industrial wastewater, centralized drinking water and surface water.
- Measuring principle: Catalytic Combustion
- Oxidation-NDIR Absorption Method
- Range: 0~200mg/L (extensible)
- Interfering substance: chloridion≤10000mg/L
- Zero drift: ±3%F.S.
- Span drift: ±3%F.S.
- Linearity: ±5%
- Repeatability: ±5%
- Measuring time: 15min
- Calibration: Support auto and manual calibration, calibration period and time are settable
- Maintenance: A single set of gas source and reagent can measure 1200 samples
- Working condition: Temperature: 5℃~40℃, humidity<95%, non condensing
- Measurement interval: Point measurement, interval measurement, or be triggered via modbus
- Signal input: 1x4~20mA (can be expanded to 2), 4xSwitch input
- Signal output: 1x4~20mA (can be expanded to 2), RS232/RS485, 4 multifunction relays
- Power: 220VAC±10%, 50~60Hz, 300W
