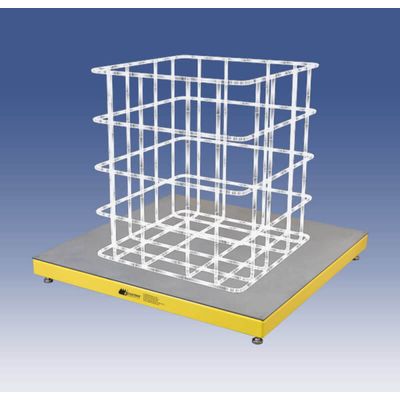

Scaletron IBC - Model 4040 -Tote Bin Weighing Scale
The Model 4040 IBC Tote Bin Scale is designed for weighing tote bins and carboys up to 72″x72″ and offers a net capacity of up to 10,000 lbs. Featuring corrosion resistant construction and a four (4) load cell design, the scale base is ideal for high capacity applications requiring frequent on/off loading of containers. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA. High Capacity Weighing Solution for Applications Requiring Frequent On/Off Loading of IBC Totes and Carboys.
Most popular related searches
multi-channel controller
load cell
seismic cable
epoxy coating
channel screen
sodium hypochlorite
stainless steel beam load cell
weighing scale
load cell scale
corrosion prevention
- Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4″ PVC decking for use in harsh environments
- Low profile platform (3.75″ to 5.44″) design increases safety and ease of container handling
- Accommodates off-center loads – containers can be placed anywhere on the scale platform and still obtain an accurate reading
- All hardware is stainless steel to prevent corrosion
- Four (4) NTEP approved stainless steel shear beam, temperature compensated load cells
- Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
- 20 ft. of 4 conductor wire cable
- AccuPro 1000 Digital Controller with one or 2 channels, 4 button keypad and optional 4-20 mA output signal – scale or loop powered
- AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
- AccuPro 6000 Digital Controller with one or 2 channels, touch screen and 4-20 mA output signal – scale powered
- AccuPro 7000 Digital Controller with up to 4 channels, touch screen and 4-20 mA output signal – scale powered
- High and low level set points
- 0-5V or 0-10V output signal
- Audible alarm
- Modbus communication
- Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
- Seismic hold down brackets
- Stainless steel, ball-bearing bolt down feet (4)
Scale is designed to accurately measure weight of:
- Alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
- Designed for frequent on and off loading of tote bins and carboys
- Standard base sizes: 24″x24″, 30″x30″, 36″x36″, 48″x48″, 60″x60″, 72″x72″ – custom sizes available
- Net capacity: Up to 10,000 lbs. (2268 kg) – custom capacities available
- High accuracy of ±0.1% of capacity
- Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
- Readout in pounds, kilograms, gallons or liters
