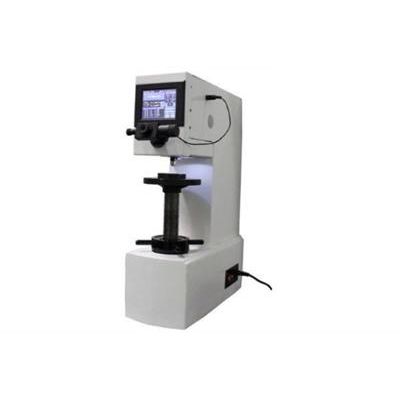

EBP - Model B-3000T -Touch Screen Brinell Hardness Testing Machine

• Close loop structure, use high accuracy load cell, force feedback, ensure more accuracy measurement.
• High precision and repeatability
• Eyepiece built-in encoder, easy operation.
• Automatic, high speed and motorized turret
• Adopted 5.6’’ Full color high resolution touch screen, menu structure, more easy operation.
• Automatic calculation and hardness conversion function
• With testing data storage function
• Easily hardness value calibration function
• RS232 interface
• Adjustable LED light source

Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

• Model: B-3000T
• Test Force: kgf: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
• N: 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
• Hardness Scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/125,HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
• Test Range: 8-650HBW
• Hardness Reading: Display on digital LCD touch screen
• Microscope: 20X digital measuring Microscope
• Resolution: 1.25μm (0.00125mm)
• Dwell Time: 1-99s
• Turret: Automatic (motorized by touch screen control)
• Load force: Automatic
• Test space: 220*120mm (H*D)
• Power Supply: AC220V, 50Hz
• Execute Standard: ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
• Dimension & weight:
• Size: 530*210*750mm (L*W*H); Net weight:135kg
• Packaging: 625*425*870mm (L*W*H), Gross weight:149kg
