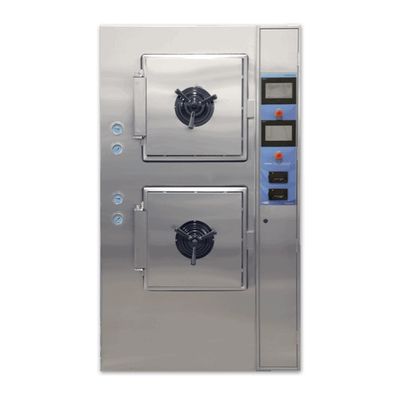

CSS - Model Dual Chamber -Tower Autoclave
Regardless of the size of your lab, Consolidated understands that space is always at a premium. This is why we designed the Tower Model autoclave. The Tower Model has a 35% smaller footprint than two sterilizers setup side-by-side, with the option to save even more space through special recessed and cabinet configurations. The Tower Model will also help save on resources by minimizing downtime and increasing lab throughput; each chamber of the sterilizer can be run independently or simultaneously with the other.
Dual X1 Controls for Tower
All sterilizers come equipped with this state-of-the-art and easy-to-use control system. Two separate touch-screens independently and simultaneously control each autoclave chamber. Allows up to 50 programmable cycles and password protection. Read more about it below.
Non-Proprietary Parts
Consolidated’s sterilizers consist of high quality, non-proprietary parts that can be easily obtained from local suppliers, authorized service groups, e-store, or directly through Consolidated.
Made to Order
Consolidated offers many autoclave customization options to accommodate your unique lab space. Other manufacturers do not provide the level of customization that Consolidated offers.
Sustainability
Save water and energy in your lab with utility-saving features that are built into our sterilizers. Read more about them below.
Unique Chamber Construction
Consolidated is the only manufacturer to offer both 316L stainless steel and nickel-clad chambers. Choose the chamber that best suits your application while maximizing chamber lifespan. Read more about materials below.
Space Saving Design
Optimize the layout of your lab with the Consolidated Tower Model Sterilizer. There is a 35% reduction of utilized floor space compared to two side-by-side sterilizers.
The X1 control system include these user-friendly features:
- Intuitive user interface with modern, easy to view 7″ touchscreen display.
- Ability to program up to 50 sterilization cycles.
- Ability to add “favorite cycles” shortcuts for quick access.
- Ability for managers to prevent users from modifying sterilization parameters on individual cycles.
- Built from industry-standard, open-source components allowing for easy availability of parts and service.
Reducing the utility costs and carbon footprint are important consideration for many facility and sustainability stakeholders. Consolidated understands the role autoclaves can play, and we’ve developed these state-of-the-art configurations to significantly reduce water and energy usage for both new and existing sterilizers.
House Steam
In most situations, standard house steam is adequate, with the use of an inlet filter to clean the steam.
Electric – Integrated Boiler
Required when house steam is not adequate and can supply up to 4 kW. Consolidated offers multiple options that can go under the sterilizer: A carbon steel boiler, the ProGEN Carbon Steel boiler, and a stainless steel boiler, the ProGEN Stainless Boiler.
Electric – Remote Boiler
This will sit adjacent to the sterilizer and are larger than 45 kW.
Steam-to-Steam Generator
Constructed from stainless steel, this system does not employ heating elements like an electric steam generator. It utilizes existing house steam to heat high purity water.
Electrical Requirements
Standard voltages for electric boilers are 208, 240, 380, 480, 3 phase. Voltages must be determined prior to ordering to configure the heating elements in the generator.
