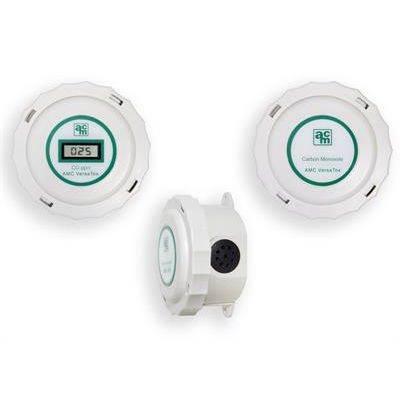

AMC - Model VersaTox -Toxic Gas Sensor/Transmitter
The AMC VersaTox was designed to provide detection for a wide range of hazardous gases, including CO, NO2, ammonia, chlorine, and oxygen. The optional features on the AMC VersaTox include concentration readout, AC power, onboard alarm relay, and a duct mountable enclosure.
The AMC VersaTox Series of electrochemical sensor based toxic gas transmitters delivers much sought after features in an economical, yet highly flexible platform. Available options include concentration display, an integral alarm relay, and AC power. With solutions for some of the most commonly monitored toxic gases, the VersaTox transmitter is designed to provide simplified installation, and maintenance. Many versions are eligible for AMC`s EZ Cal Sensor Exchange Program, allowing for years of trouble free operation.
- Enclosure: ABS
- Signal Output: 4-20 mA Analog
- Supply Voltage: 12-30 VDC, Optional 12-24 VAC
- Dimensions: 3.75" Diameter x 2.2" H
- Weight: 150 g
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Operating Humidity: 15-85% Non-Condensing
- Transmitter Warranty: Two years
- Sensor Warranty: CO 3 Years; all others 1 Year
- Optional Relay Contact: SPST 2A @ 30VDC Resistive
- Eligible for EZ Cal Sensor Exchange Program
- ƒRoHS Compliant
- ƒOptional Concentration Display and/or Relay
- ƒMultiple units can be powered from the same transformer
