TP Pumps - High Capacity Pressure Boosting Tank

The electric pump is mounted on top of a steel pressure tank containing a rubber membrane which is surrounded by pressurised air. This air is further compressed as water is pumped into the membrane until a pre-set pressure is reached at which point the pressure switch automatically turns the pump off and a non-return valve prevents the water running back. The compressed air acts as a spring which stores the pressure while the pump is not running. The store of water under pressure is available immediately a tap is turned on (or a ball cock opens) and as the pressure in the tank starts to drop, the pump switches back on automatically. The pressure switch and air pressure can be adjusted by the user if necessary to suit individual applications.

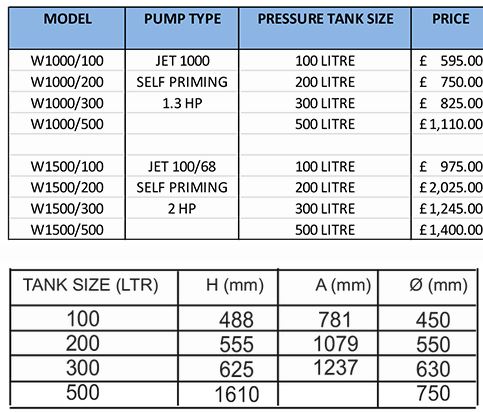

A range of pressure sets fitted with high capacity pressure tanks to provide a greater reserve of water stored under pressure.

• Dairy and Stock Farms
• Groups of Houses
• Campsites and Holiday Complexes
• Industrial Applications

• Increases available flow during peak demand periods.
• Reduces running costs.
• Reduces on/off switching rate of pump and minimises wear.
