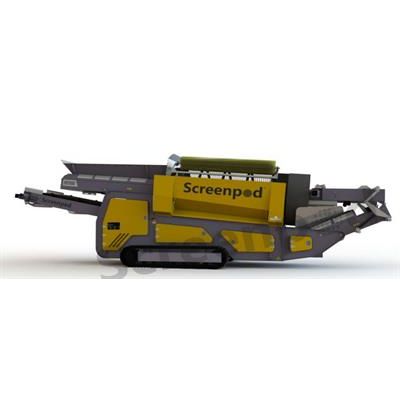

Screenpod Trommel - Model TS516 -Track Mounted Trommel Screen
Length – working: – 13.37m (43’8’’). Width – working: – 6.37m (20’9’’). Height – working: – 3.15m (10’3’’). Max Width – transport: – 2.42m (7’9’’). Min Width – transport: – 2.28m (7’5’’). Max Height – transport: – 2.73m (8’9’’). Min Height – transport: – 2.54m (8’3’’). Length – transport: – 11.69m (39’3’’). Weight – 14,500kg (32,000lbs).
Most popular related searches
Unique, compact Mobile Trommel Screener with the following features:
- 1.5 metre dia. X 3.4 metre trommel drum.
- 45Kw (60 bhp) CAT 2.2 turbo diesel engine.
- Tracked mobile maneuverability.
- Optional Wireless Remote Control Tracking.
- Integrated hydraulic folding stockpiling conveyor.
- Fast on site setup time – less than 10 minutes.
CAPACITIES:
- Diesel tank capacity: – 70 L (18 US gal)
- Hydraulic tank capacity: – 265 L (70 US gal)
- Capacity – feeder: – 2.50m³ (3.27 cu yds)
