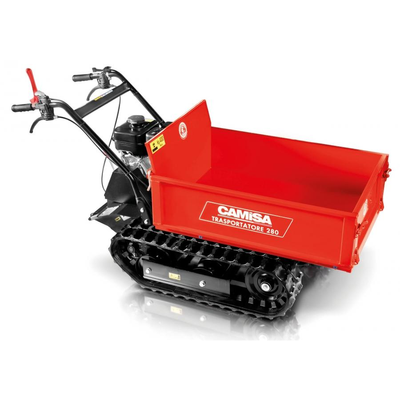

Fratelli-Camisa - Model TP280 -Tracked Minidumper

SHARE

Hydraulic tipping. Poles kit for wood-carrying. Oversides kit for extensible bed. Snow-blade with mechanical positioning. Barrel spraying Lt. 120 with pump, hose winder Mt. 100 and sprayer. Lifter bed with discharge height mm. 900, capacity Kg. 300.

Most popular related searches
pump hose
hose pumping
hose pump
  • Engine:
    • Rato R 210 (Hp 6 / Kw 4,4) gasoline
    • Honda GP 160 (Hp 4,8 / Kw 3,6) gasoline
    • Honda GX 160 (Hp 4,8 / Kw 3,6) gasoline
  • Pull start: recoil
  • Gearbox: 3 speed, 2 forward speed and 1 reverse
  • Safety lever: with belt clutch and tensioner
  • Steering: mechanical steering with oil-bath and levers on handlebar
  • Guide roller: on nylon bushes, with removable pins
  • Tracks: rubber
  • Spring tensioner: for the tracks
  • Loading platform: mm. 900x650x250 with extensible sides or dumper bed
  • Tipping: manual
  • Overall dimensions: mm. 1710x650x980
  • Weight: Kg. 180
  • Capacity: Kg. 400
  • Max. speed: 6 Km/h
  • Treated on all metallic parts: cataphoresis and powder painting
