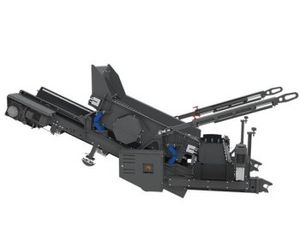

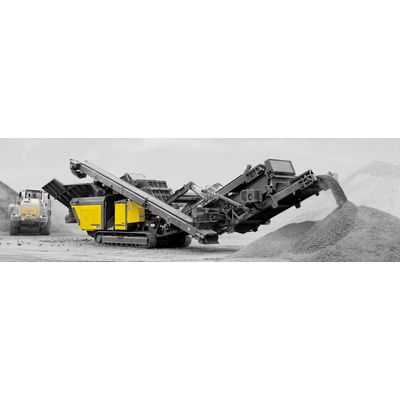

RM - Model V550GO! -Tracked Mobile Rotor Impact Crusher
The RM V550GO! brings together the technology of a cone crusher and vertical shaft impactor. Combined with the benefits of the RM GO! principle, it is more of a compact sand and grit mill than a mobile crusher. The crushing technology produces an unsurpassed level of pulverisation.
The RM V550GO! unites the vortex crushing principle and all the proven benefits of the RM GO! principle, thus achieving a high degree of crushing efficiency which is second to none while maintaining maximum flexibility. Expanding the mobile crusher with RM add-ons such as the RM CS4800 compact screen turns it into a fully mobile, compact sand and grit mill.
The superior pulverisation technology processes even very large feed material efficiently, often saving users an intermediate pre-crushing stage. Residual and oversize grain material can thus be turned into value grain in a single pass. Combined with the add-on screen deck and RM CS4800 compact screen, three value grains can be produced.
Throughput: Up to 200 t/h depending on material
- Inlet opening: 950 x 480 mm
- Crusher unit: Crusher with 2+2 or 4 hammers, rotor speed adjustable between 39.5 and 48 m/s
- Power unit: John Deere diesel engine, 6 cylinders 280 kW at 2000 rpm
- Weight: 33,000 kg
RM GO! SMART represents a new era in the interaction between humans and machines.

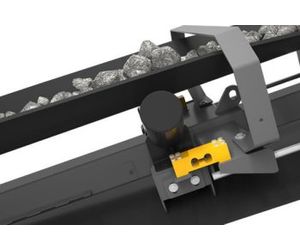

The RM belt scales measure the material weight on the discharge belts and sends this data to the RM GO! SMART App where it can be displayed at any time.

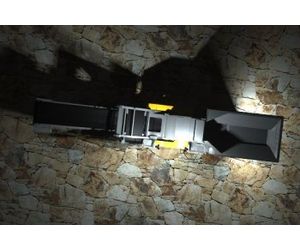

With additional floodlighting, you have sufficient light to work safely even at dawn and dusk. The lighting package Plus includes the lighting mast, engine compartment lighting and periphery lighting as well as warning lights.

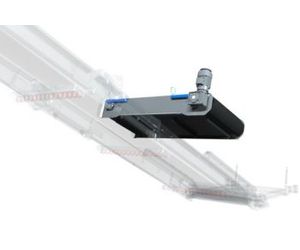

Magnetic separator
The short distance from the crusher outlet to the magnetic separator avoids blockages and, thanks to the strong permanent magnet, metal is removed from the crushed material.
Thanks to the dust suppression system you can reduce dust emissions and increase acceptance of the mobile crusher when operating in residential areas.

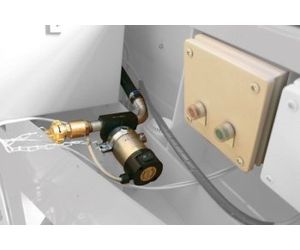

Integrated fuel filling pump
Thanks to the integrated filling pump including hose, overflow switch and automatic switch-off system you no longer need an external pump to fill up.
The mesh deck screen was developed to make our crushers even more efficient. The crushed material is screened to the desired end aggregate size in a single pass. Including precise sorting accuracy.
