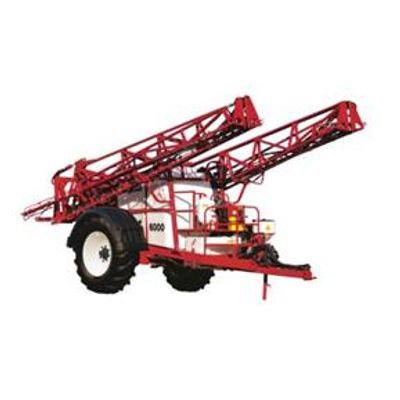

Pegasus - Model 5000 | 6000 -Trailed Boomsprays

• Proven chassis design - Structural integrity and stability for a smooth ride
• Stable booms - Exceptional boom stability ensures spray coverage is maximised
• Simple operation - The Pegasus range is renown for being exceptionally easy to operate with one master panel for all liquid functions

STANDARD FEATURES5000 OR 6000 LITRE TANK

• Low profile easy to clean polyethylene tanks
• Deep fully draining sump for complete clean out. 50mm drain outlet
• Dual Venturi agitation with direct chemical induction at the venturi point to optimise suspension of chemicals
• Tank rinsing facility and large drain outlet
• UV and chemical resistant to increase longevity
• Top/bottom fill-point with screen filter to ensure particles don’t enter the tank
• 5 section motorised valves, or 7 optional
• ISOBUS compatible
• Also compatible with:
  • Trimble
  • Topcon
  • Greenstar
  • Optional Trimble Ready with Field IQ module available for order.

BOOMS

• Choose from 24, 30, 33 and 36 metre booms – with wing-lift available on all models as an option
• Parallelogram boom lift exceeds two metres and is fitted with a hydraulic accumulator suspension system for smooth boom ride
• Pendulum-type full floating self leveller vastly improves turning stability of the boom and provides additional shock absorption from sudden wheel track movements
• Adjustable boom-end breakaways, boom skids, fence line protectors and protected nozzles to minimise potential contact damage
• Four-ram hydraulic side-fold system which locks for safety in transport
• Flushing taps at end of each boom section for excellent boom flushing
• Chemical resistant finish to prevent corrosion
• Non-drip nozzle bodies with drift reducing low pressure AirMix® air-induction nozzles

AUTOMATIC SPRAY RATE CONTROL

• Bravo 180S fully automatic spray rate controller fitted standard
• Electric motorised valves provide excellent reliability and are easily accessible for servicing

ADDITIONAL FEATURES

• Positive displacement, oil bath, chemical resistant diaphragm pump (180 L/min) handling a system pressure of up to 10 bar
• 470 litre flushing tank to rinse in the field
• 20 litre fresh water hand wash tank fitted for operator safety and convenience
• Integrated 60 litre chemical induction hopper (Chem-e-flush) for easy chemical mixing and transfer to the main tank
• Central control panel for exceptionally easy operation of all liquid functions – filling, mixing, flushing and spraying set up
• In-line boom filters fitted standard

• Fully automatic MT3405 spray rate controller with motorised valves for additional operator information and more boom sections if required
• Trimble Ready with Field IQ module
• Integrated GPS options easily adapted to most control systems for precise application
• Left/right hydraulic wing-lift kit for lifting each boom wing by approximately 15° to overcome in-field obstacles, undulating ground or contour banks
• 3m adjustable axle with airbag suspension included
• Polyethylene mudguards and mudflaps to cut down dust or mud splash
• Up to 7 section boom control to minimise over-spraying in corners and triangular areas
