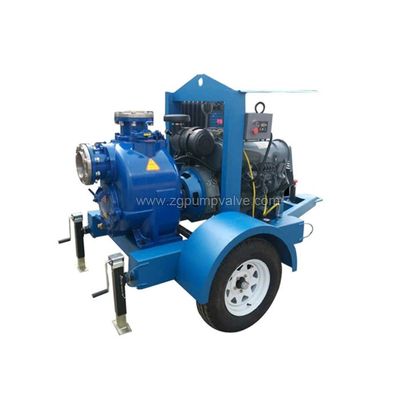

Zigong - Model YQZW -Trailer Mounted Diesel Self-Priming Pump

It has the characteristics of simple structure, good self-priming performance, strong sewage discharge capacity, high efficiency and energy saving, convenient use and maintenance, etc. The diesel engine and the self-priming pump are perfectly combined and can be manually set. , automatic control.There are various materials available for self-priming pump, including stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...

• Flow rate: Q=8～800m3/h
• Total head: H=10～80m
• Speed: n=1450rpm/2950rpm
• S.g.: γ ≤1.15
• Temperature: T=--20～160℃
• Pump diameter: 40～350mm

• Simple structure, easy to use and maintain, with a high efficiency, small and light
• Transmission mode: direct and variable-speed. The actuators: Electric Motor and diesel engine. In purchase order, specify actuator type (power, rotations), to confirm spindle coupler or belt specification.
• Pump direction: from pump inlet side, impeller normally is counterclockwise, (650CHW -5, -7, and 10 pump clockwise).

• For fresh water or similar fluids
• Widely used in agricultural, industrial, municipal water supply networks
• Sewage and deposit of water purifying system
• Paper-making, textile, foods, chemicals, electric power
• Distribution, mining, sewage drain, leather, brewage
• Non-corrosive and highly-polluted sewage drain
