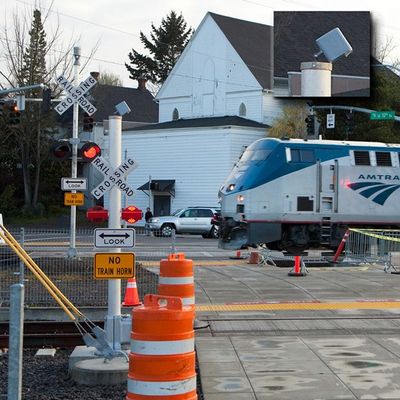

Novax - Model DS101-DC Series -Train Crossing Audible Warning Signal System
With over twenty-five years of experience in the design and manufacture of Audible Warning Signals and Traffic Signal Control solutions, Novax proudly presents the DS100™ Series APS for Train Crossings.
Most popular related searches
- Approved Train Crossing Sound.
- Intelligent Dynamic Proportional Volume Compensation for high audibility.
- 10 to 30 VDC Power for Standard Rail Crossing Operation.
- Maximum Volume Settings are selectable for rail crossings in residential areas.
- Custom Sounds are Available that can be Easily Programmed for the Crossing.
- Electrical: 2 Wire 20 Gauge
- Power: 10 to 30VDC @ 200 mA (Maximum)
- Dimensions / Weight: cm: 12.7cm x 9.5cm x 12.7cm (5" x 3.75" x 5") L x W x H
- Output: 90dB at One Meter (Maximum). With Proportional Control, Output will Self-adjust from Minimum Volume Setting to 90db based on Ambient Noise Level
- Selectable Output Maximum: Selectable Dip-Switch Settings for Maximum Output (4 Levels)
- Colour: Standard Painted, Customer Specified
- Temperature: Tested to: -37°C to 74°C (-35°F to 165°F)
- Enclosure: Weather Proof Deep Draw Housing, External Adjustments, No Dismantling Required.
- Loudspeaker: Waterproof, UV Resistant, Vinyl Impregnated Cloth.
- Approximately 0.3 Kg (0.7 Lbs)
